A Better Way to Work

Included with the Chariot Bucket

ROTATING FORK SYSTEM

The rotating fork system allows for 130 degrees travel to square up a sign. The lower forks work great for taller channel letters and cabinets, while the mid and upper forks are ideal for channel letters, cabinets, and raceways that aren’t as tall.

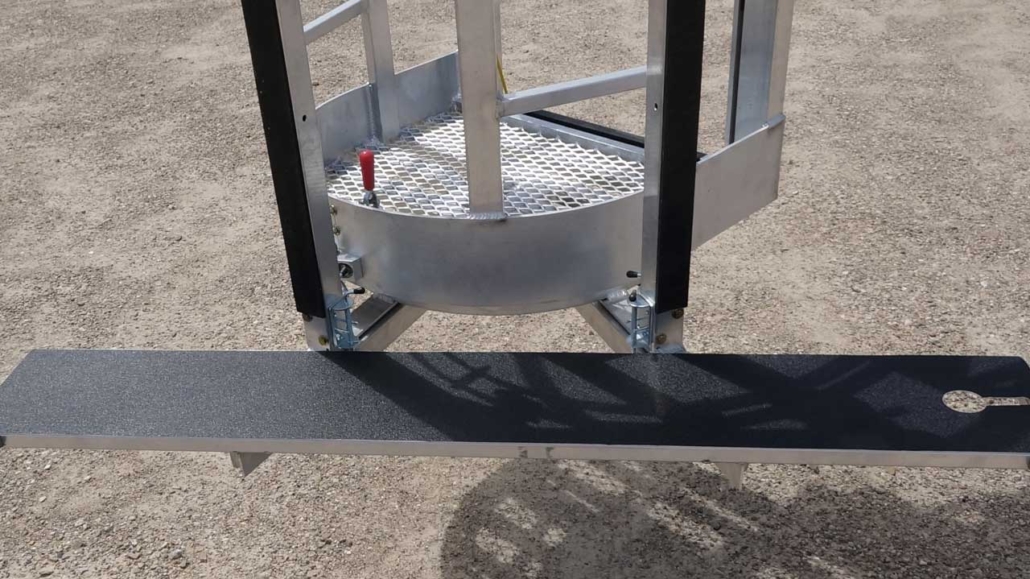

MATERIAL HANDLING PLATFORM

This coated platform attaches with pins to the upper, lower and mid forks, and supports the sign prior to installation. A hole at the edge of the platform allows it to hang from the side of the bucket when not in use.

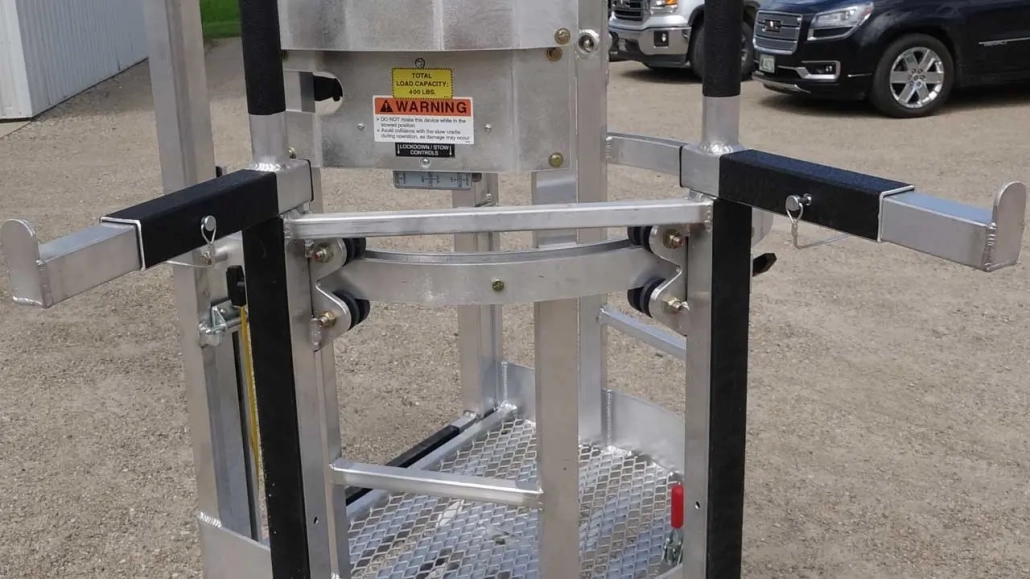

FORK EXTENSIONS

These removable extensions are designed for use with the upper and mid forks.

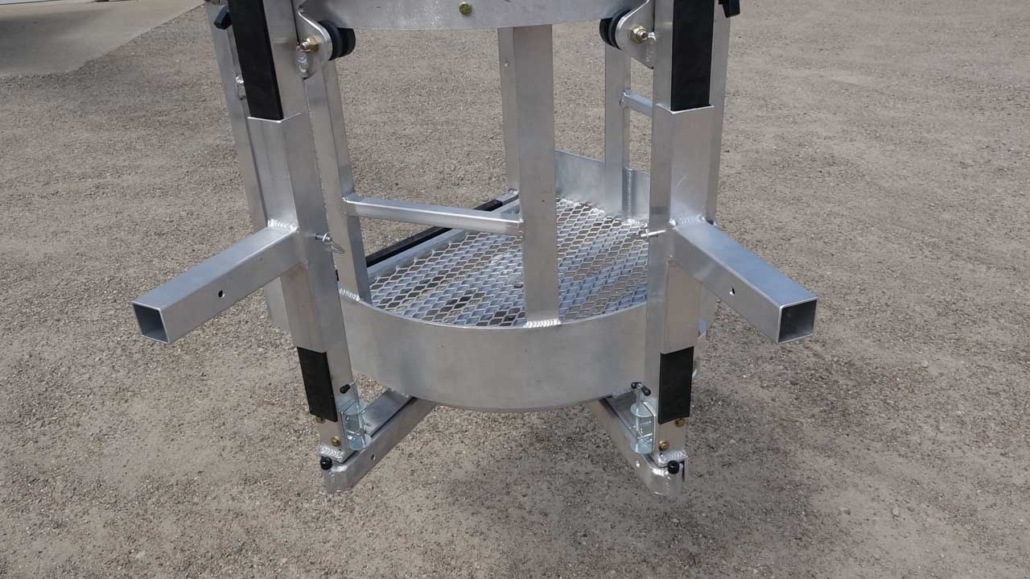

MID-FORK EXTENSIONS

These removable extensions are designed for use with the upper and mid forks.

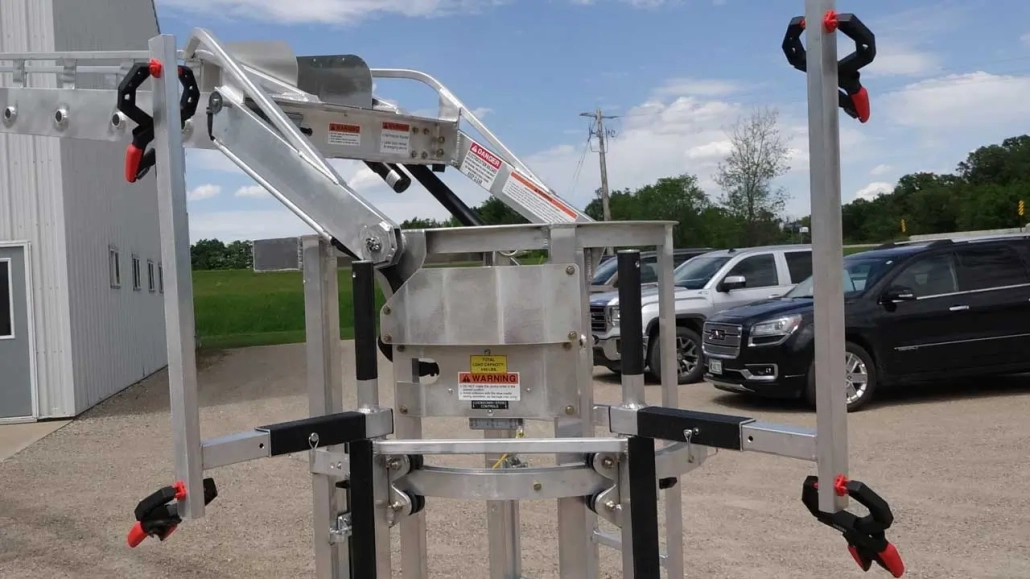

PATTERN ARM WITH CLAMPS

Adjustable in every direction, the pattern arms free-up the installer’s hands for leveling and taping pattern.

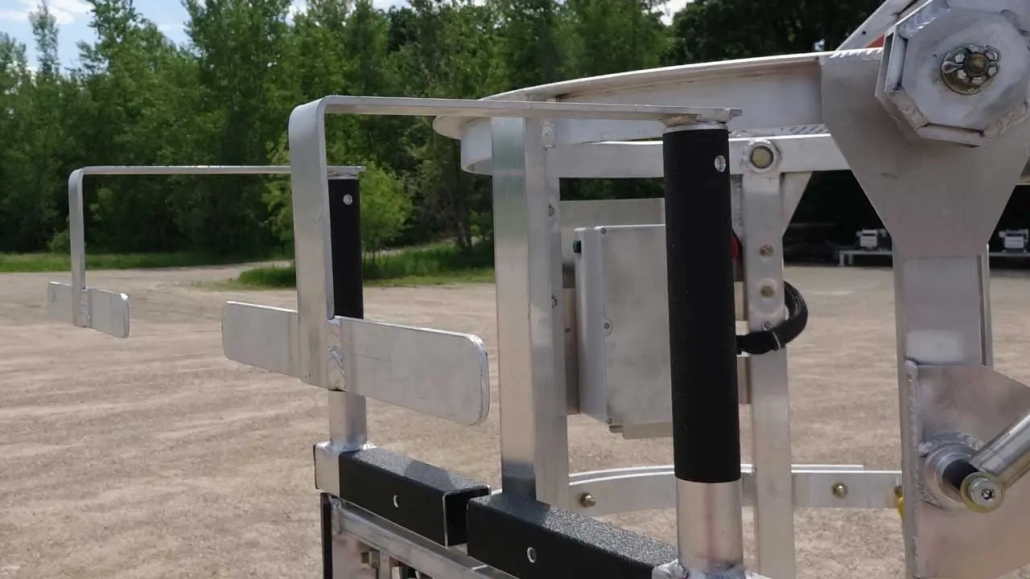

SECUREMENT BRACES

The securement braces slide into the vertical tubing and bracket the outside edge of the sign while it rides on the platform, giving the installer a free hand to run the controls.

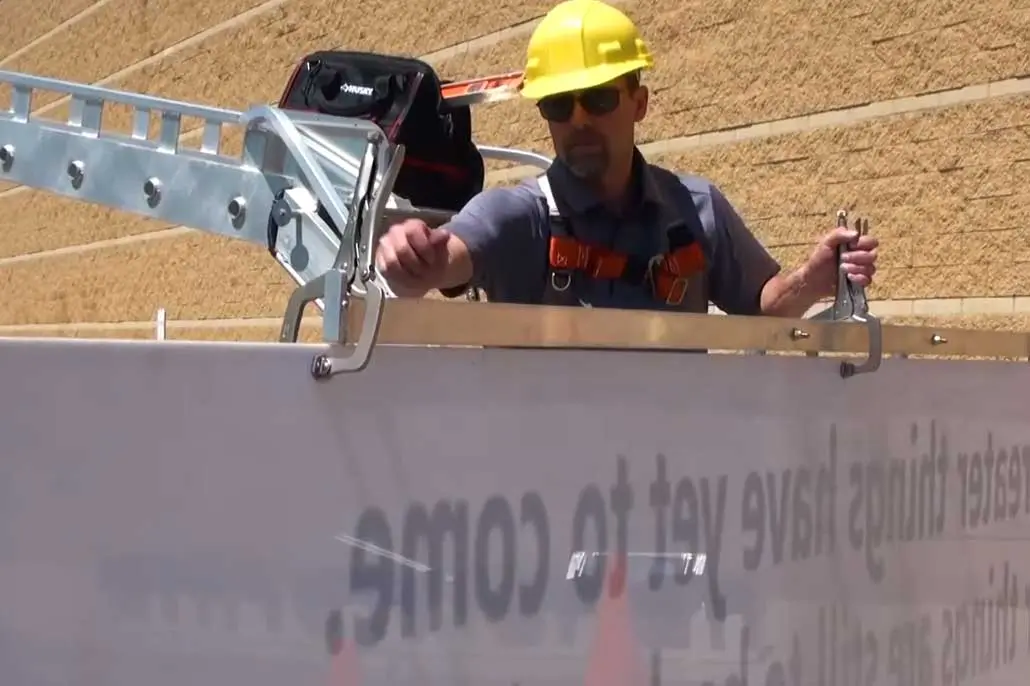

SIGN FACE BAR

The Face Bar slides into the Chariot’s vertical tubing and pins into place. Three heavy-duty clamps are included to hang the sign face from the bar.

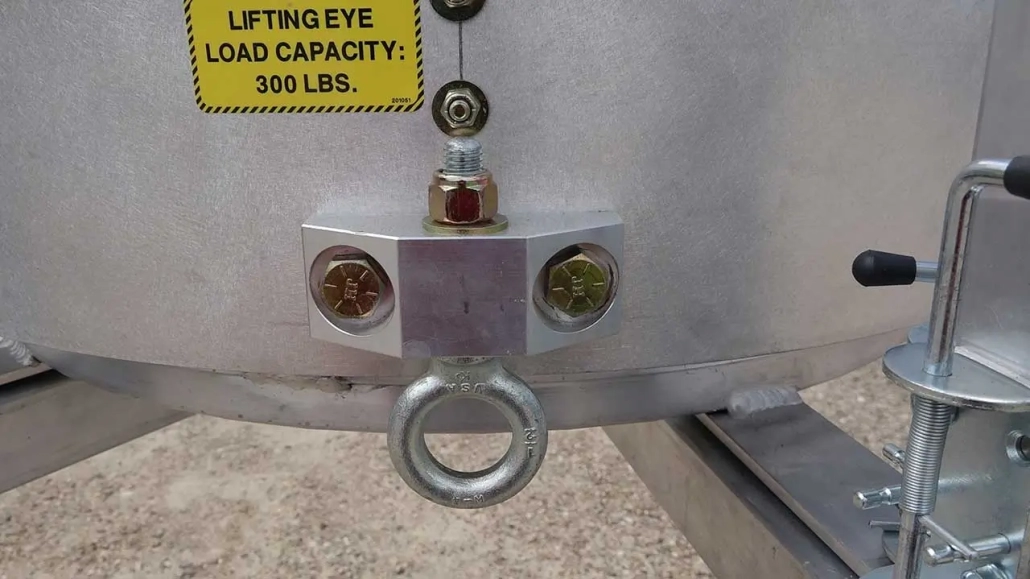

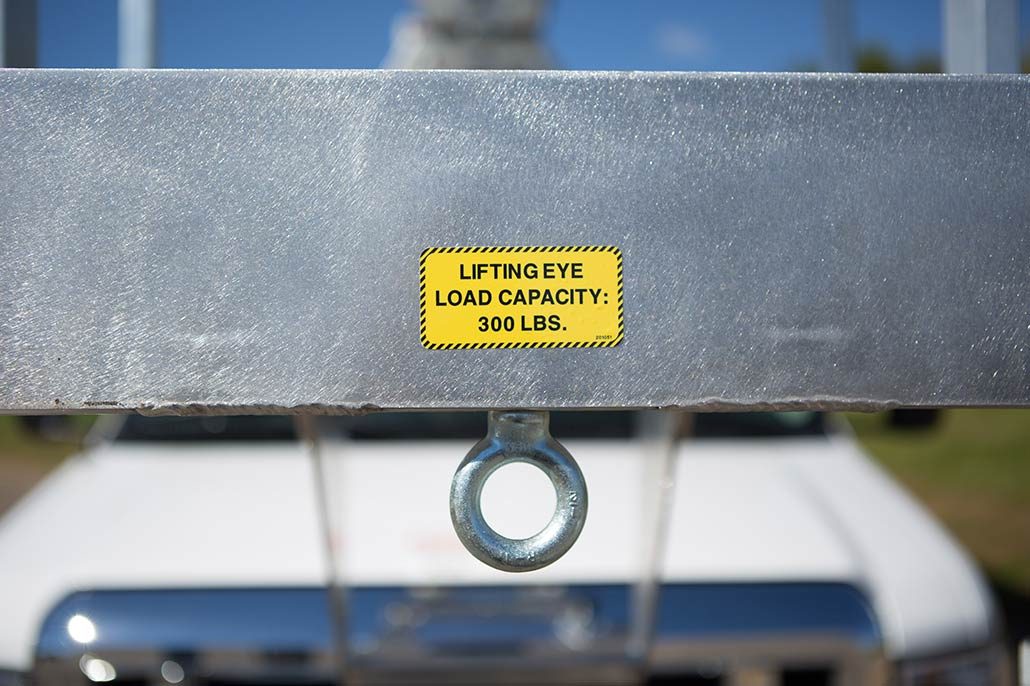

LIFTING EYE

An attachment point rated for 300 lbs. of overhead vertical lifting.

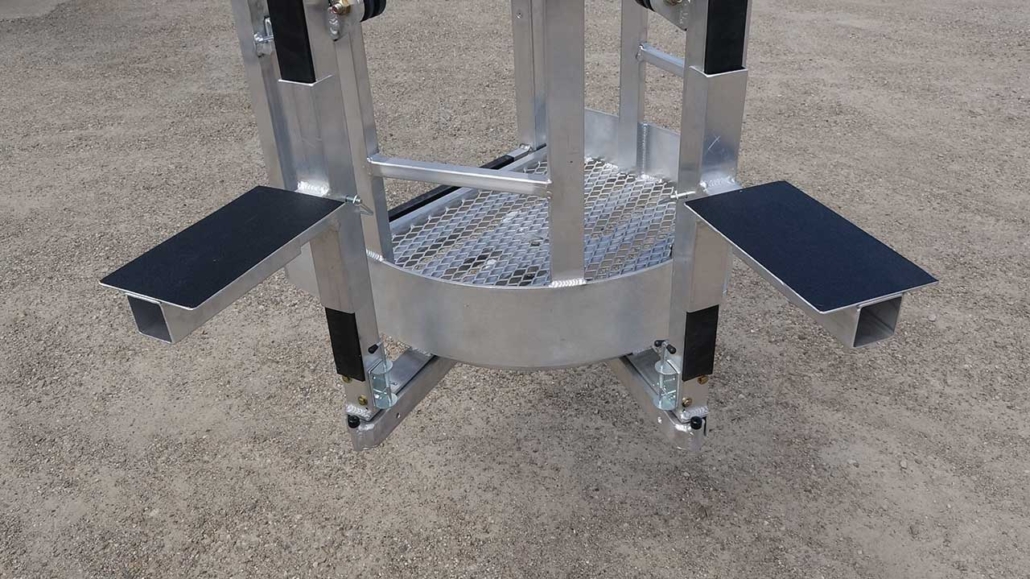

MATERIAL HANDLING PADS

These coated pads fit on the upper, lower, and mid forks and pin into place.

Optional Accessories

BANNER SPINDLE

Make an easy one-man job of rolling out and hanging wall patterns or banners.  The material simply rolls off the spindle as the Van Ladder moves along the mounting surface.  A spring loaded keeper ensures the spool stays tight as it unwraps.  The spindle is designed to be quickly attached to the front of the bucket when needed.

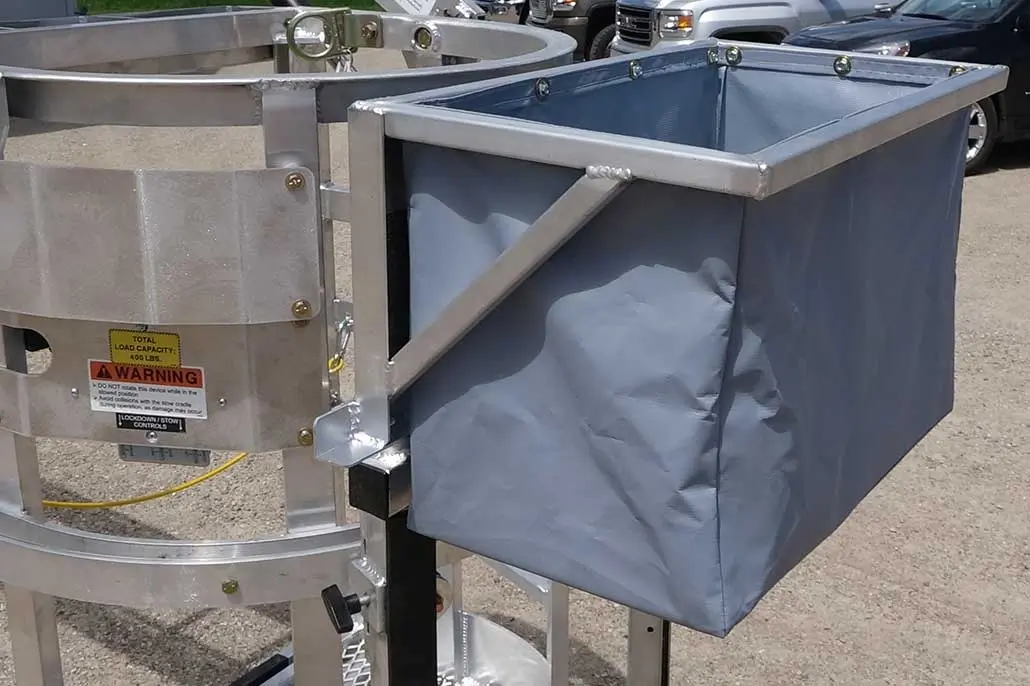

PROJECT BAG

Made with an aluminum frame, heavy canvas, and a rigid high-density poly bottom.

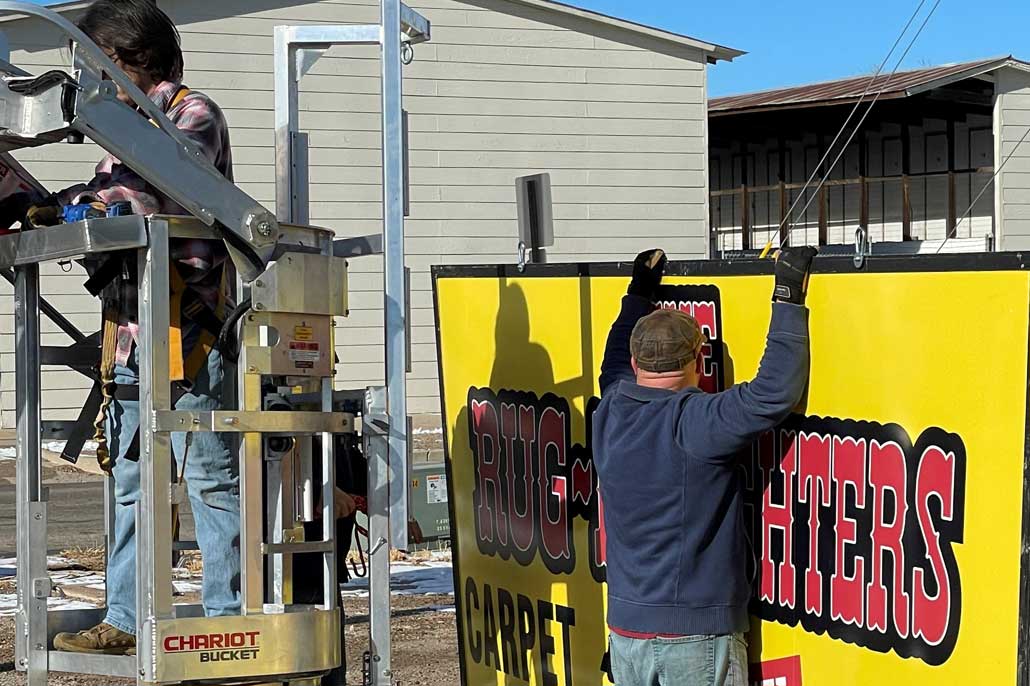

JIB ATTACHMENT

Because of their size or design, some signs are best hung from above. For these unique challenges, the jib attachment mounts to the Chariot’s rotation system and provides a lifting eye at head-level.

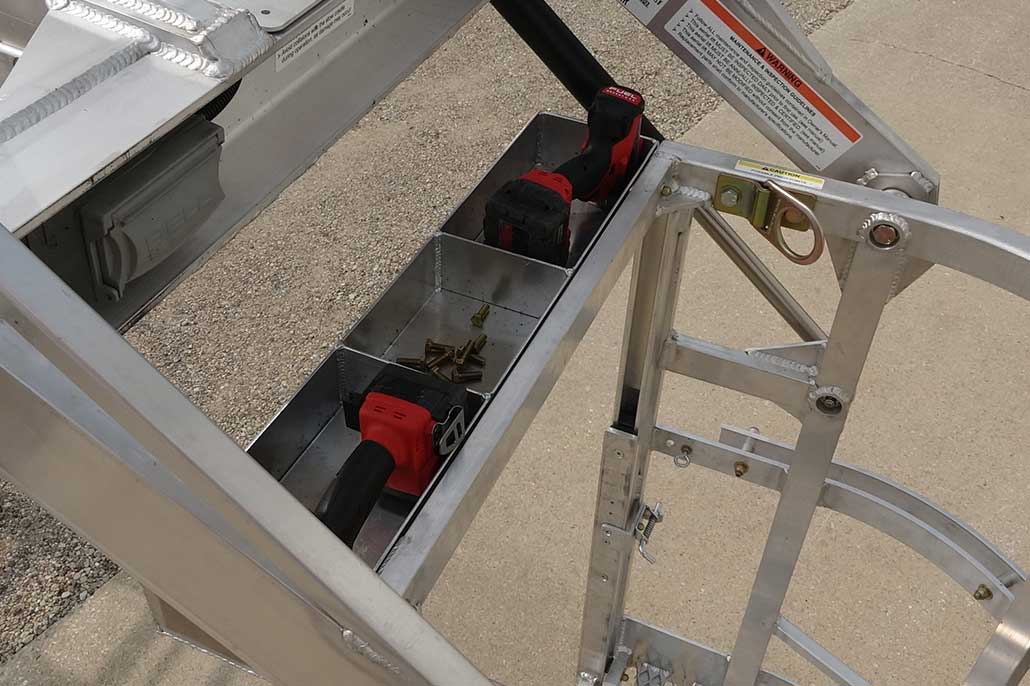

BUCKET WORK TRAY

Heavy duty aluminum construction for attaching to rear of bucket.  3” deep x 6” wide x 26” long.  Perfect for tools and supplies.

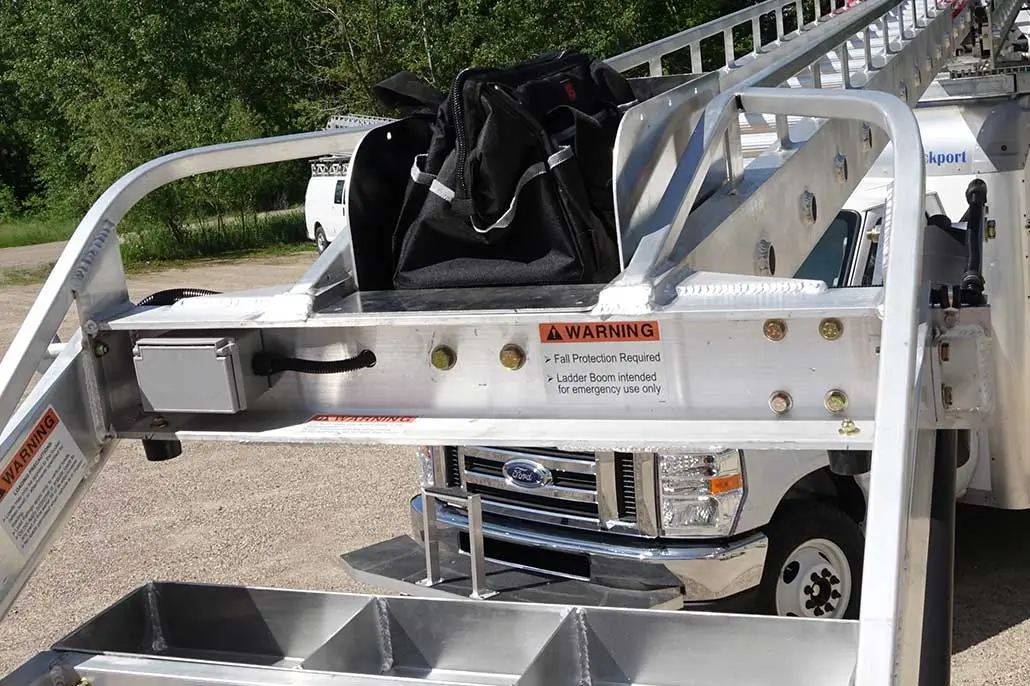

TOOL BAG HOLDER WITH CANVAS BAG

This removable aluminum bracket holds a heavy-duty canvas tool bag between the rails of the fly ladder.

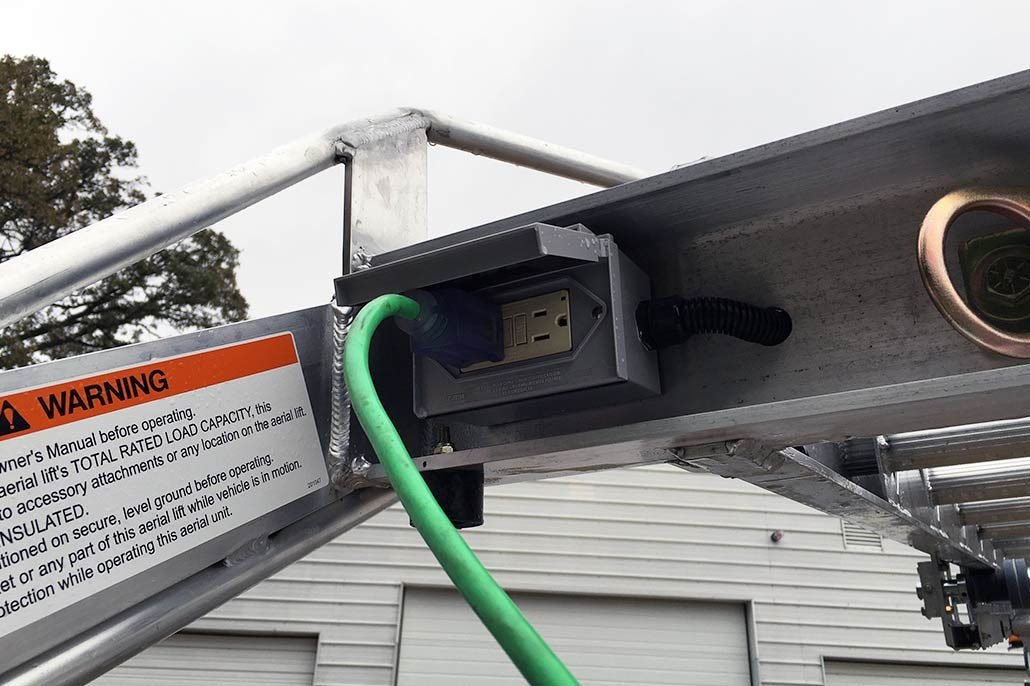

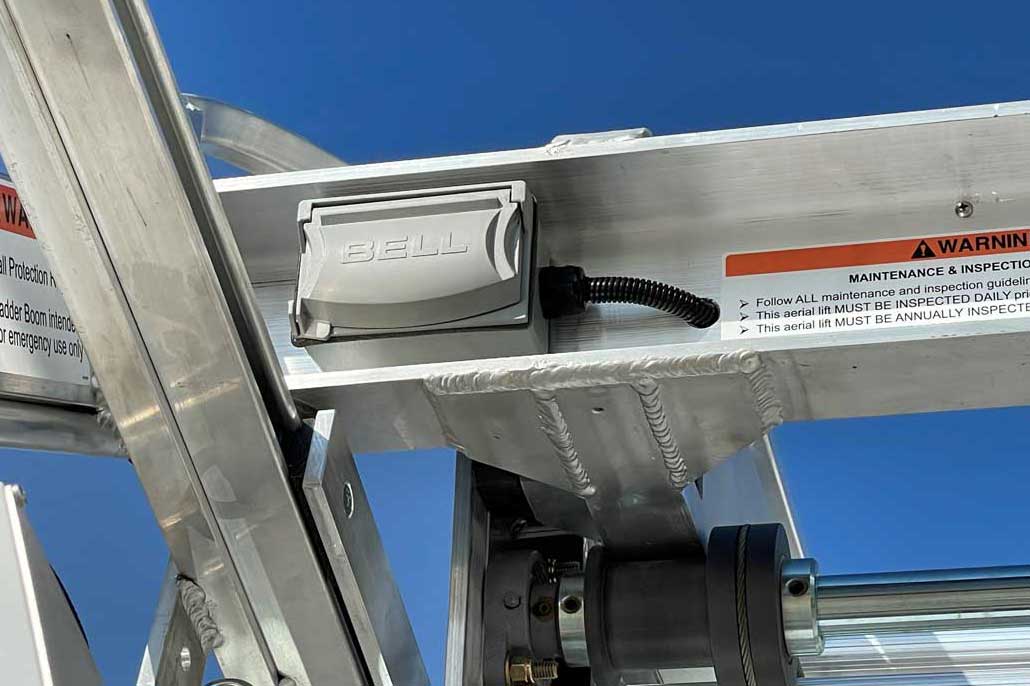

110V BUCKET OUTLET

Power up those corded tools in the bucket with the integrated 110V circuit and conveniently located outlet.  Ground level cord end provided to connect to the power source of your choice.  Vehicle mounted power sources (generators/ inverters) are available and can be installed upon request.

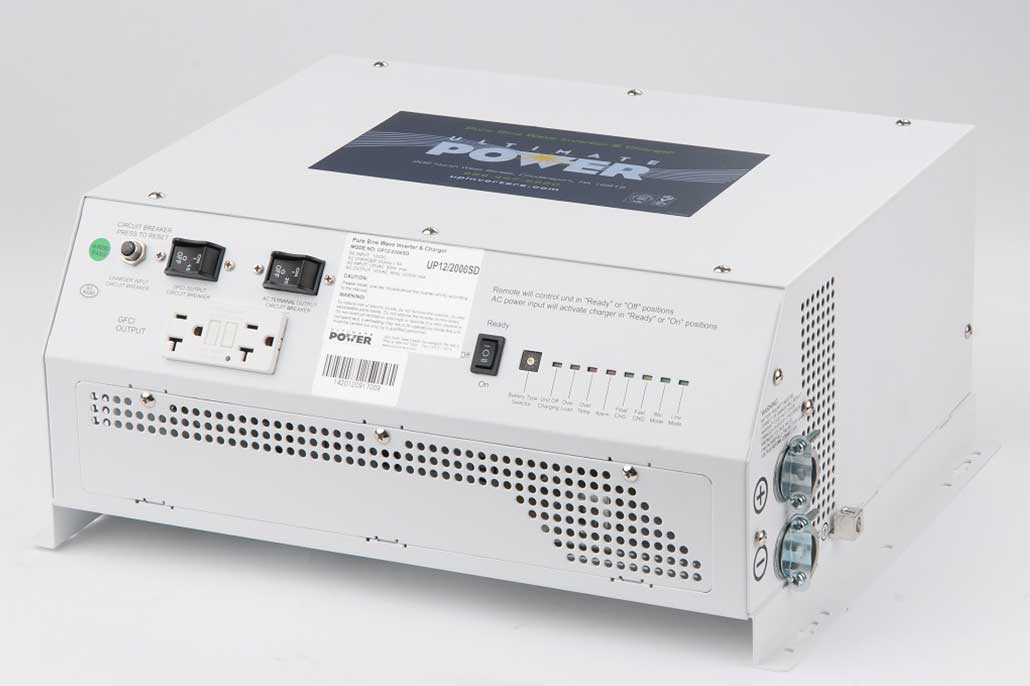

2000W ULTIMATE POWER INVERTER

This power supply is installed in the forward side compartment of the box’s passenger side.

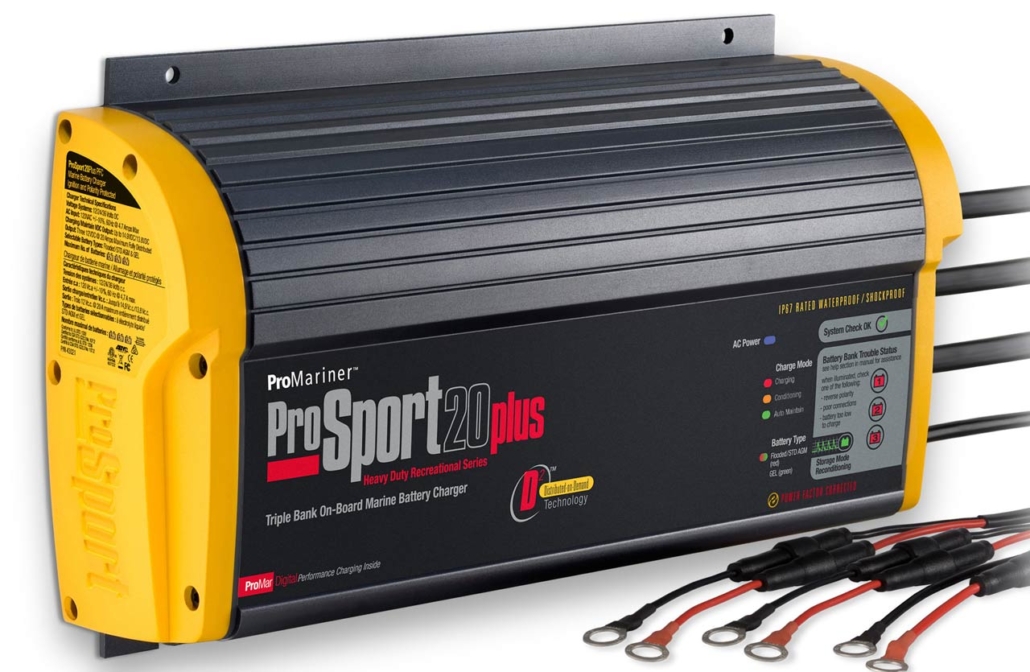

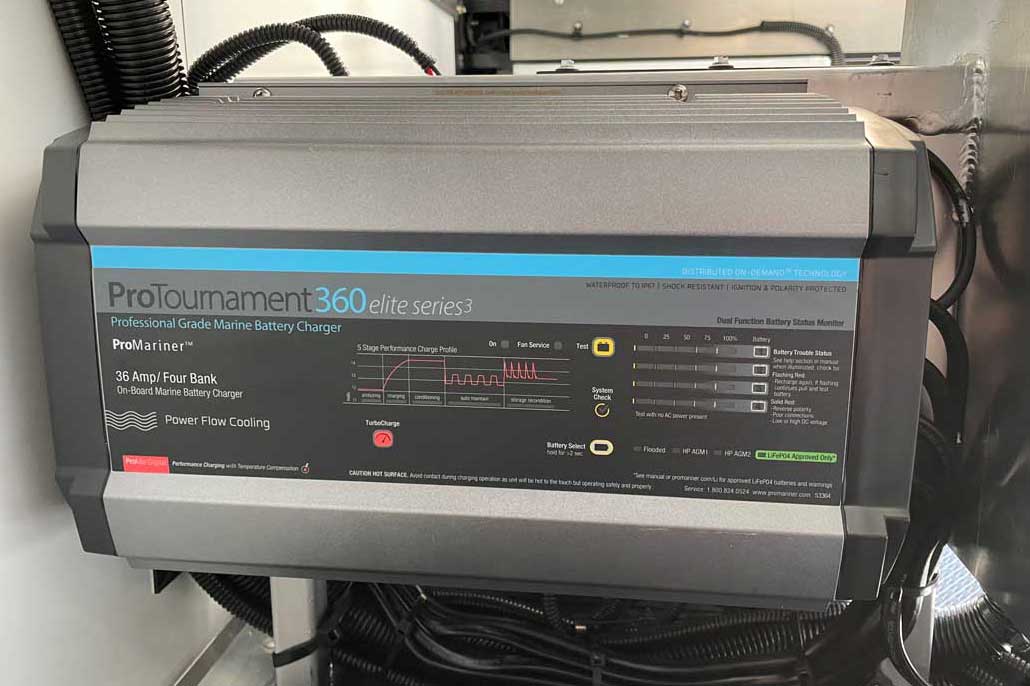

OVERNIGHT CHARGER

Marine grade charger to keep all batteries in optimum condition after prolonged periods without much vehicle run time.  Equipped with weather proof receptacle so vehicle can be secured during charging.

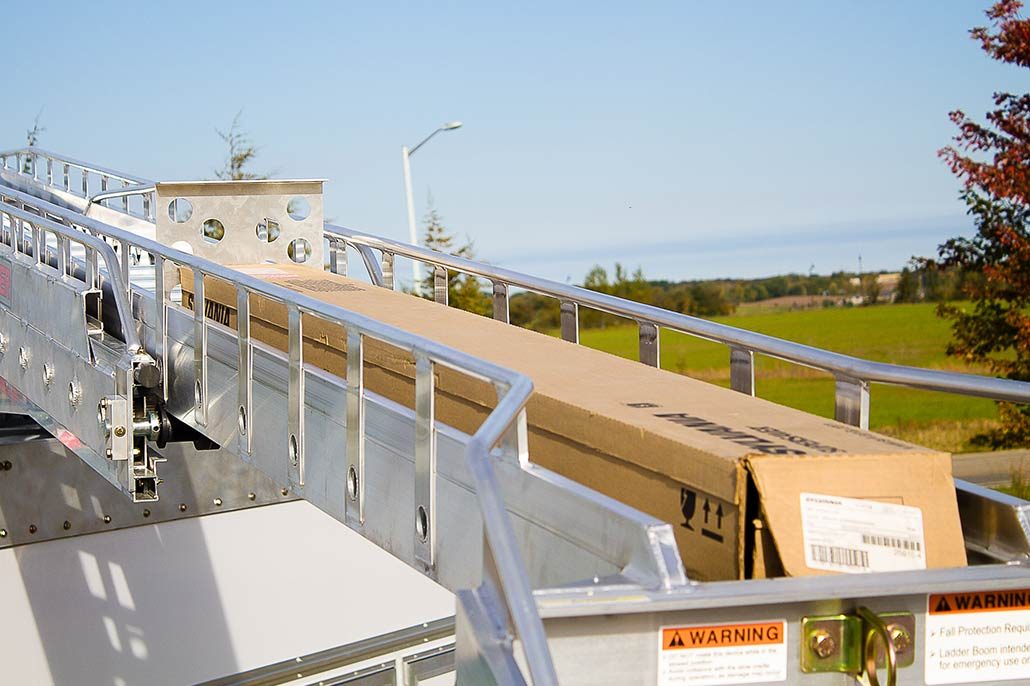

FLUORESCENT BULB HOLDER

Place a box of fluorescent bulbs conveniently on the ladder boom within easy reach of the bucket.  Locate the holder on any of the ladder rungs to adjust for a variety of bulb sizes.

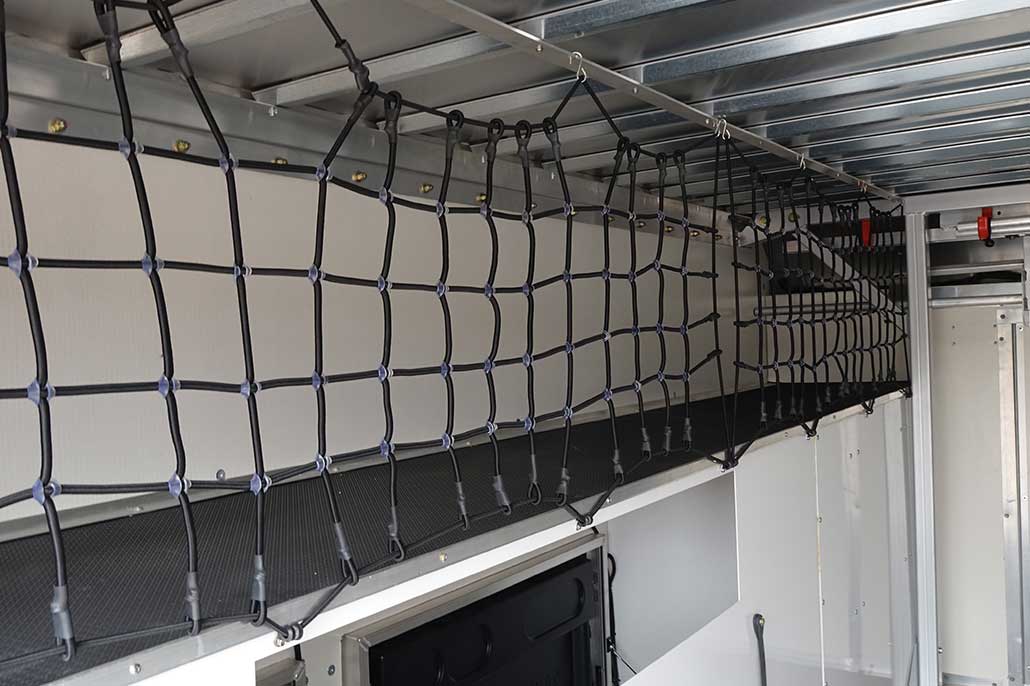

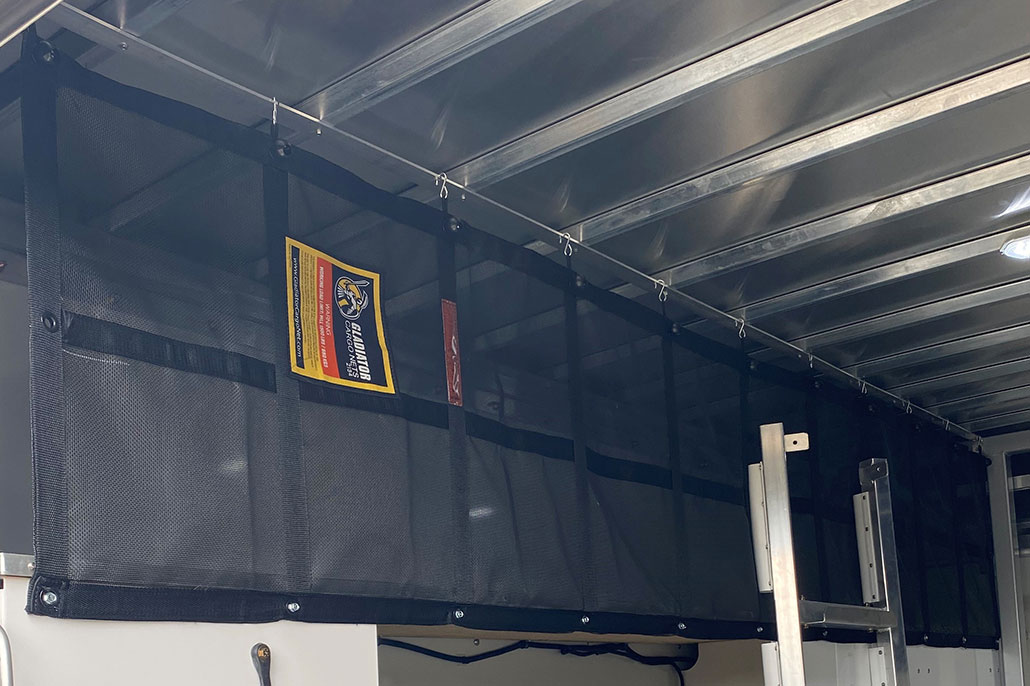

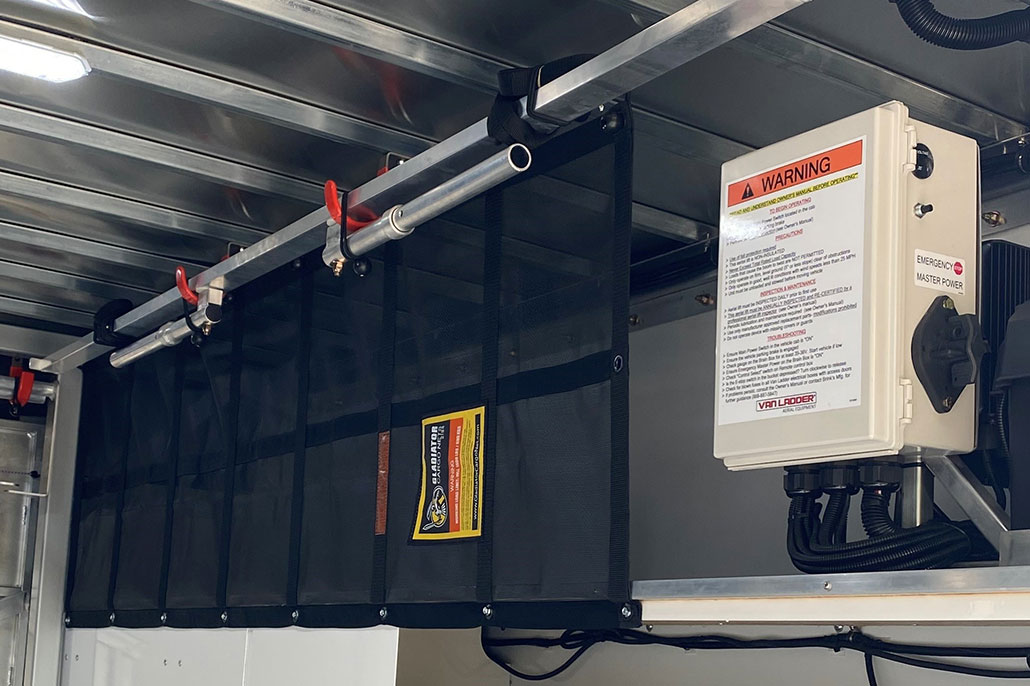

CARGO NETTING – DRIVER SIDE

Installed on the driver’s side only of the Workport box.

CARGO NETTING – PASSENGER SIDE

Installed on the passenger side of the Workport box.

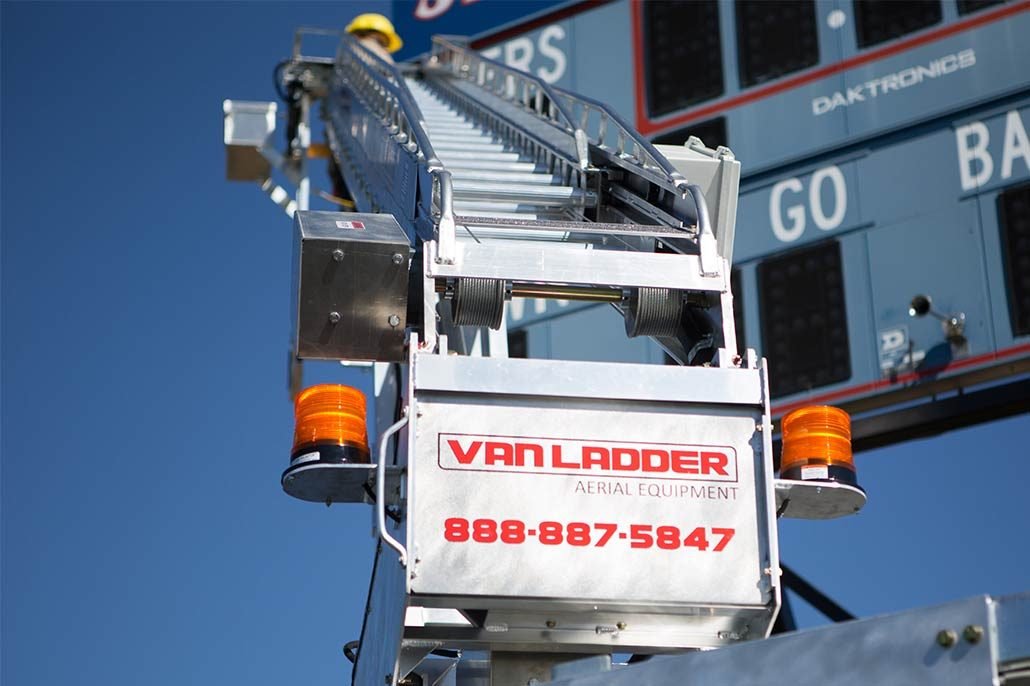

STROBE LIGHTS (SET OF 2)

Class 1 Amber LED strobes, by Federal Signal, increase visibility at all times of the day.  Strobes have adjustable flash patterns and are permanently installed at the rear of the boom turntable.  Strobes automatically activate when the Van Ladder is in use.

FULL BODY HARNESS

Comfortable, heavy-duty, top quality.  OSHA required.

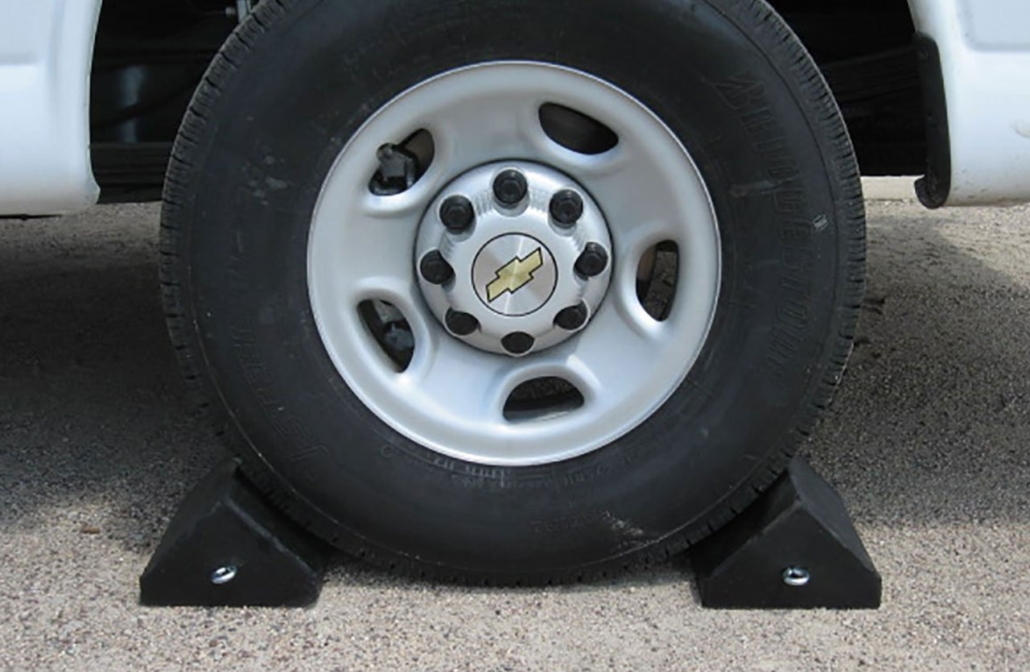

WHEEL CHOCKS (SET OF 2)

Heavy Duty molded rubber chocks to hold up to all conditions.  Molded in eyelets to attach to cable or chain as desired.

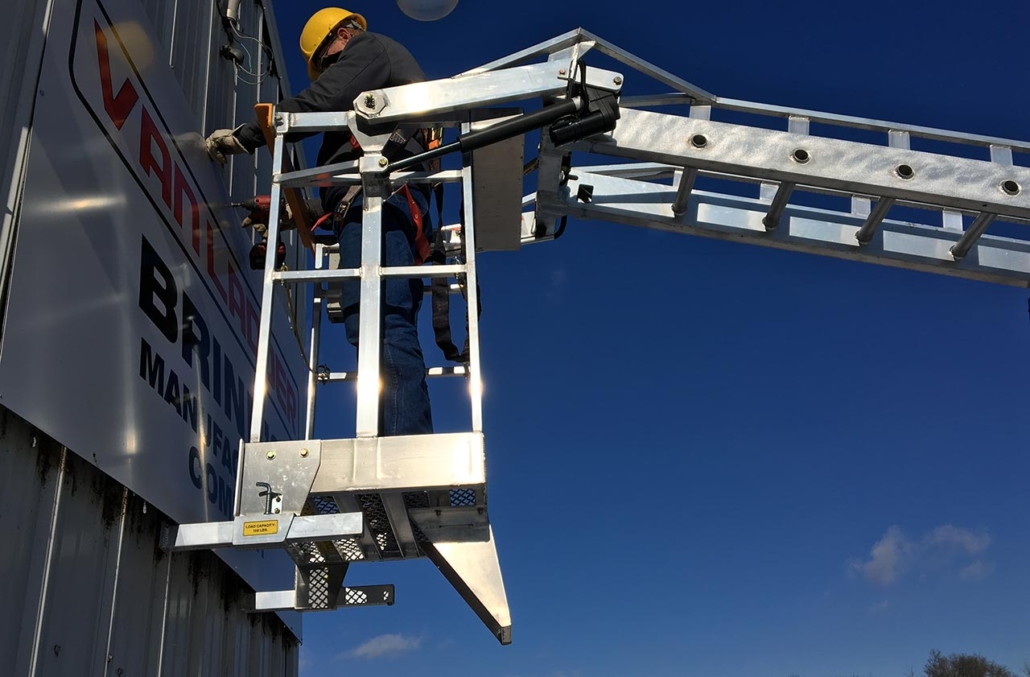

SQUARE BUCKET FORKS

Handle signs and sheet material with the adjustable bucket forks.  The Van Ladder quickly converts to a mini material handler with this optional accessory.

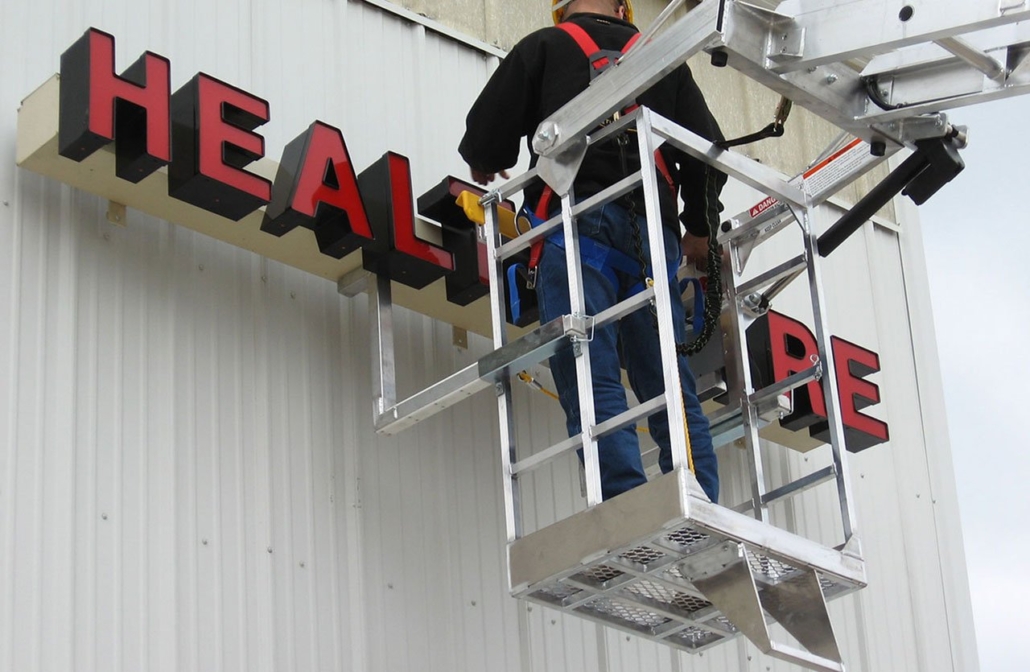

SQUARE BUCKET RACEWAY FORKS

Make putting up raceway signs a one man job.  The adjustable forks allow operators to square up the sign to the mounting surface.

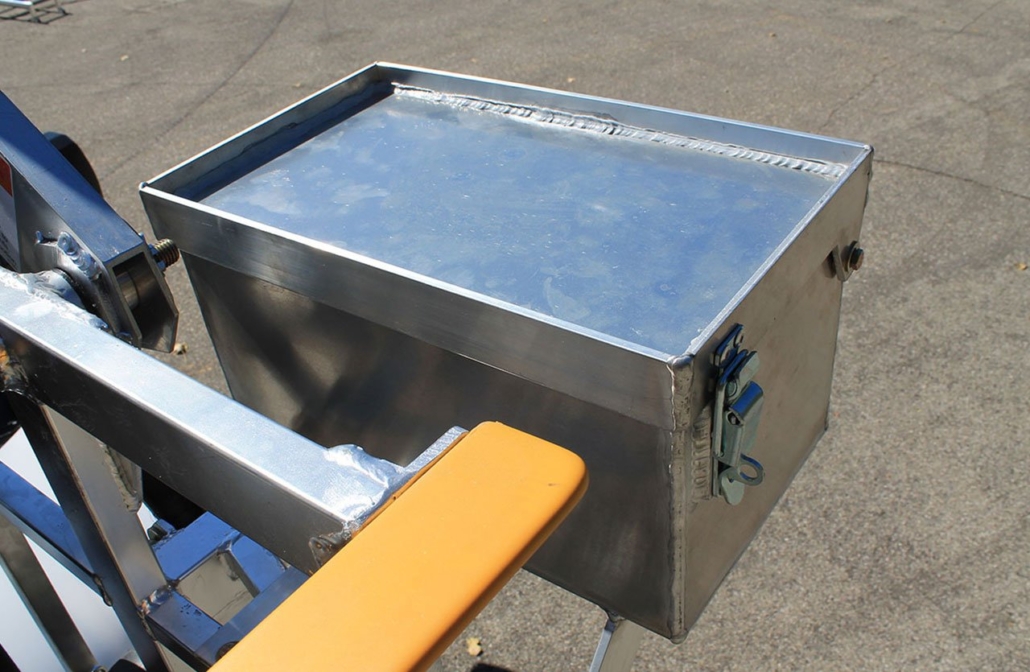

SQUARE BUCKET TOOLBOX

Heavy duty aluminum construction with integrated top tray.  Lockable clasp to secure contents.  Inside dimensions: 6 ½” deep x 8” wide x 14” long.

SQUARE BUCKET LIFTING EYE

Add an attachment point rated for 300 lbs of overhead vertical lifting to the bottom of the bucket.
