VEHICLE TYPES
Van Ladder bucket trucks are available in several standard packages.

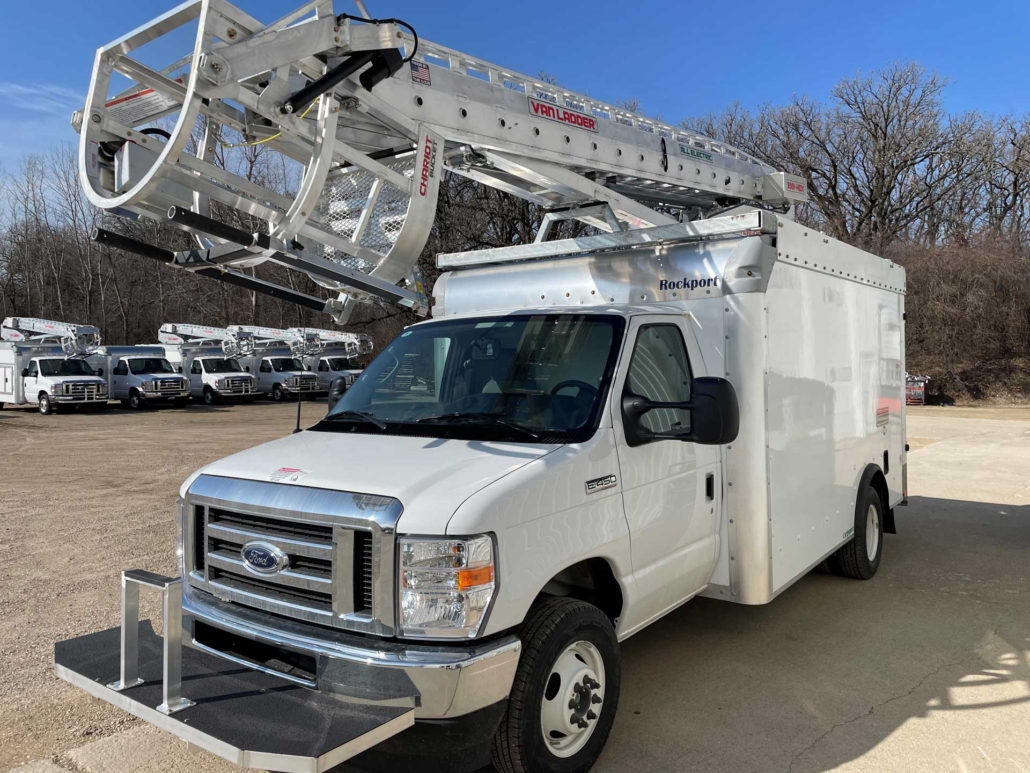

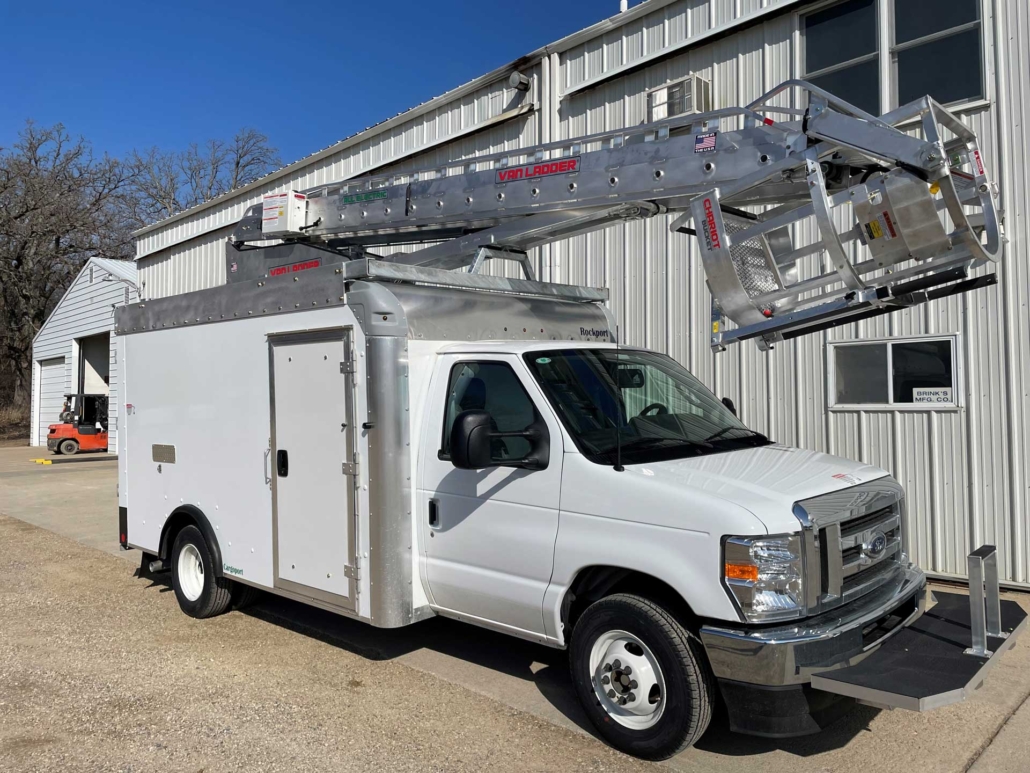

Van Ladder bucket trucks are available in several standard packages. Installations on Workport and Cargoport bodies coupled with either a Ford or GM cutaway chassis provide a cost effective solution for many applications. Custom installations on other vehicle types are also available. Contact our knowledgeable staff to discuss your vehicle needs.

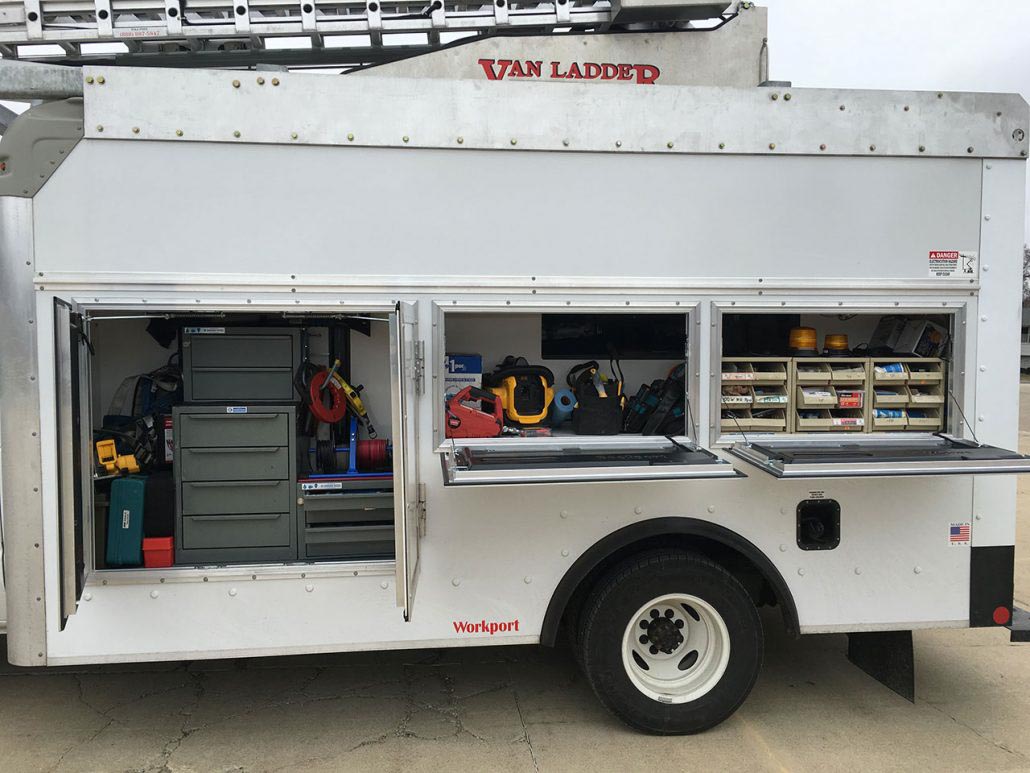

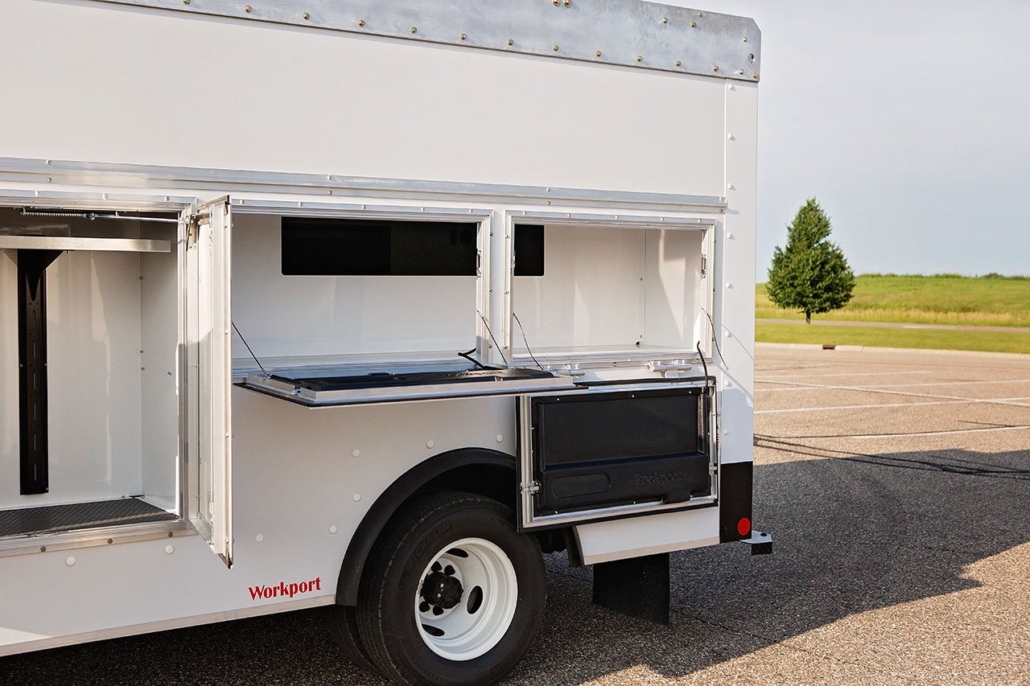

Workport

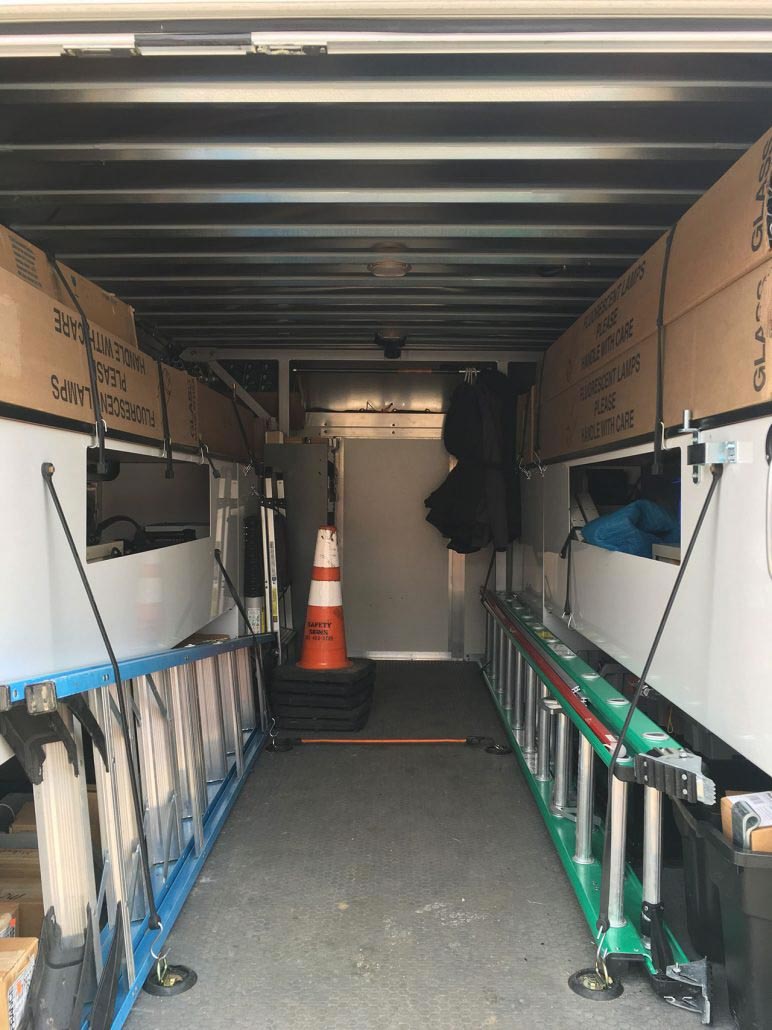

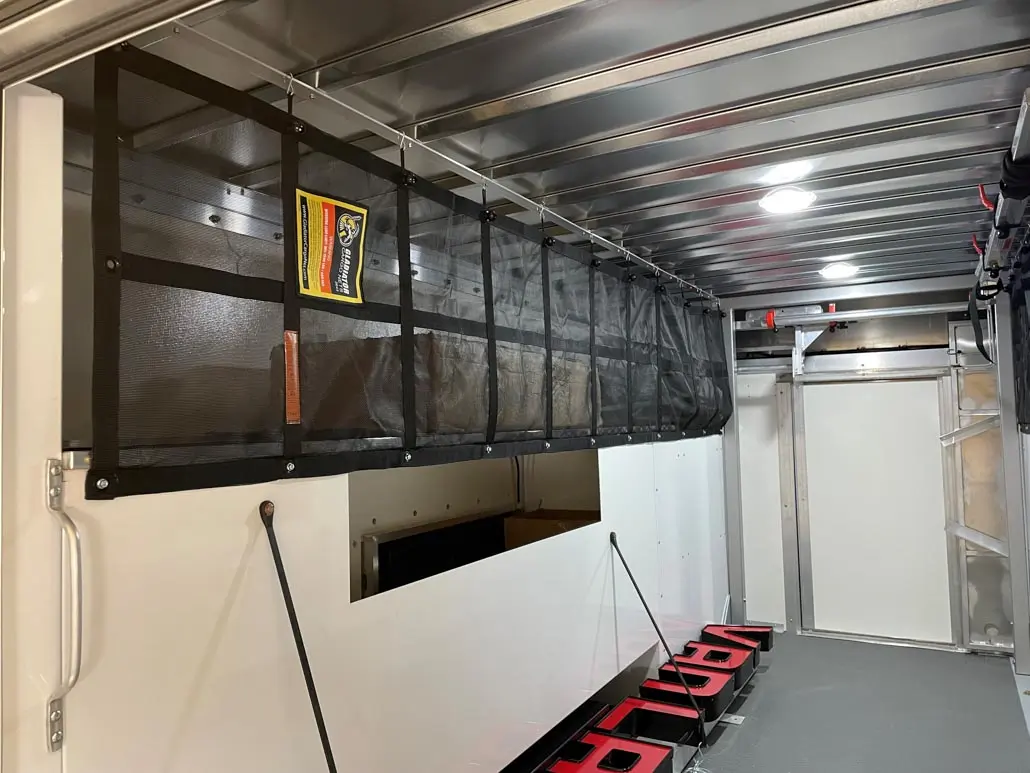

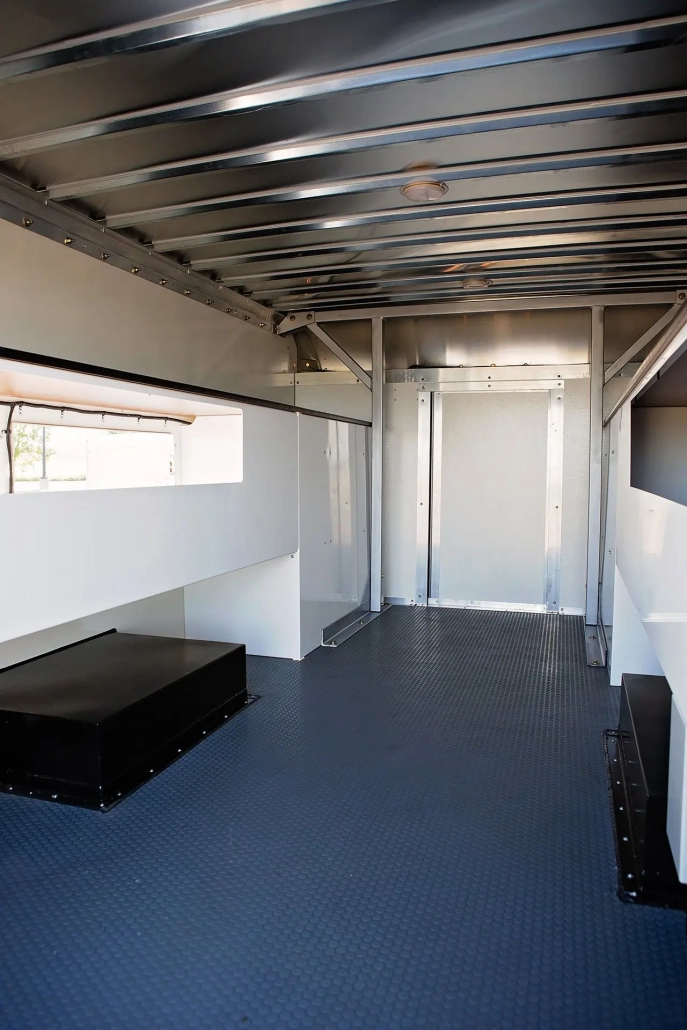

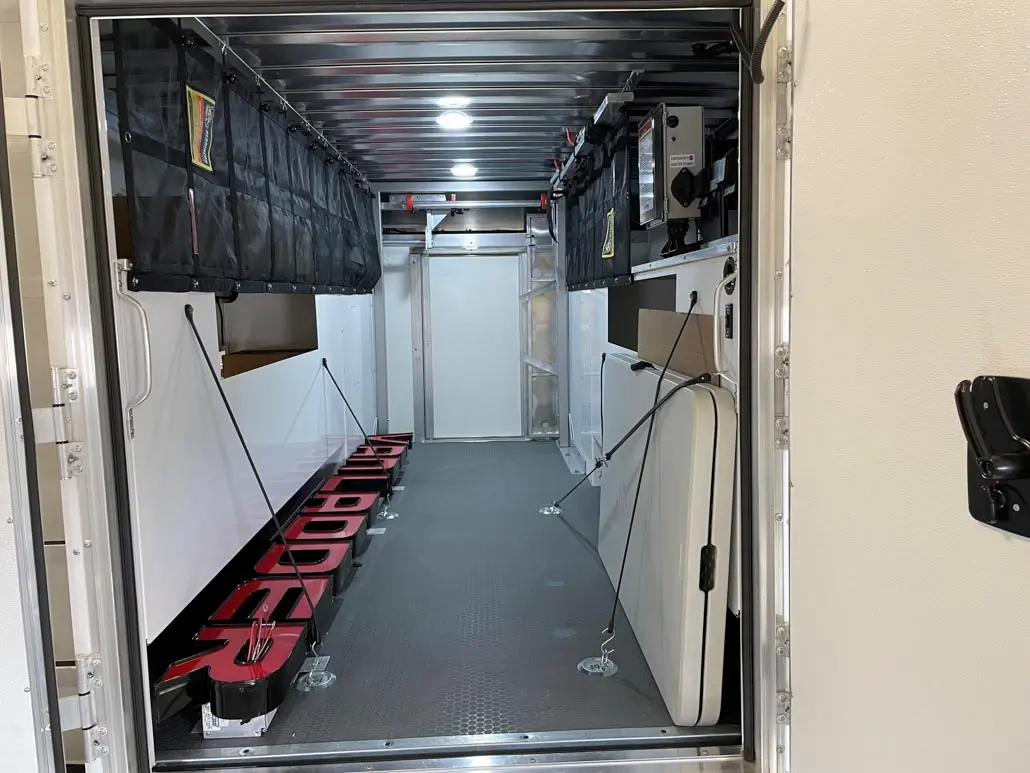

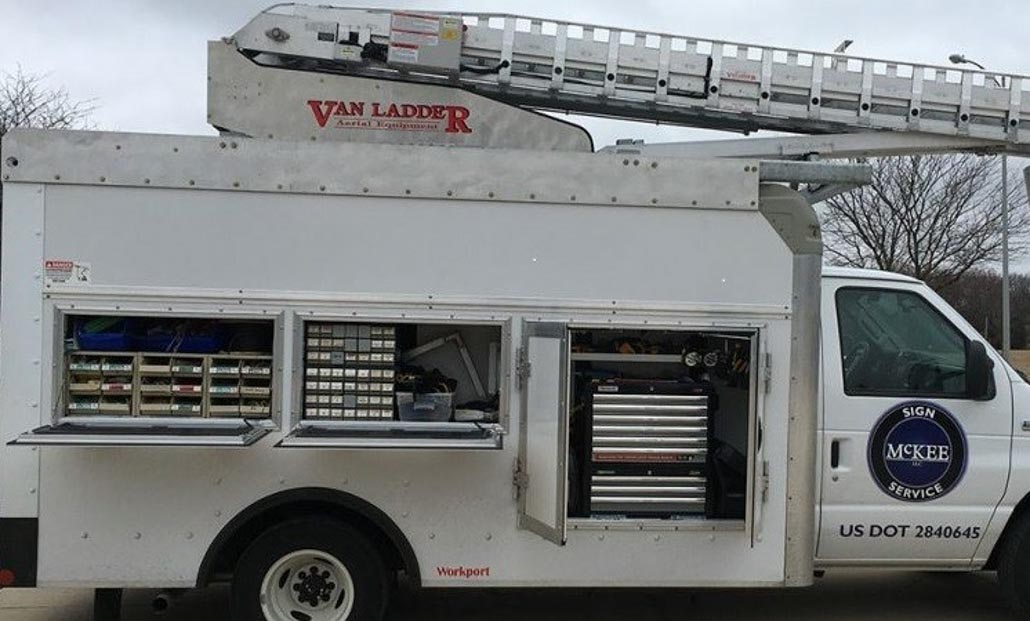

The Workport enclosed service body is manufactured to Van Ladder specifications to achieve an efficient and economical solution for a variety of applications. The generous compartments with adjustable shelving and a fully enclosed walk in area make this bucket truck a true workshop on wheels.
Standard features include:
- Fiberglass reinforced side walls
- E-coated steel and vinyl wrapped rear structure
- Aluminum roof
- Full undercoating

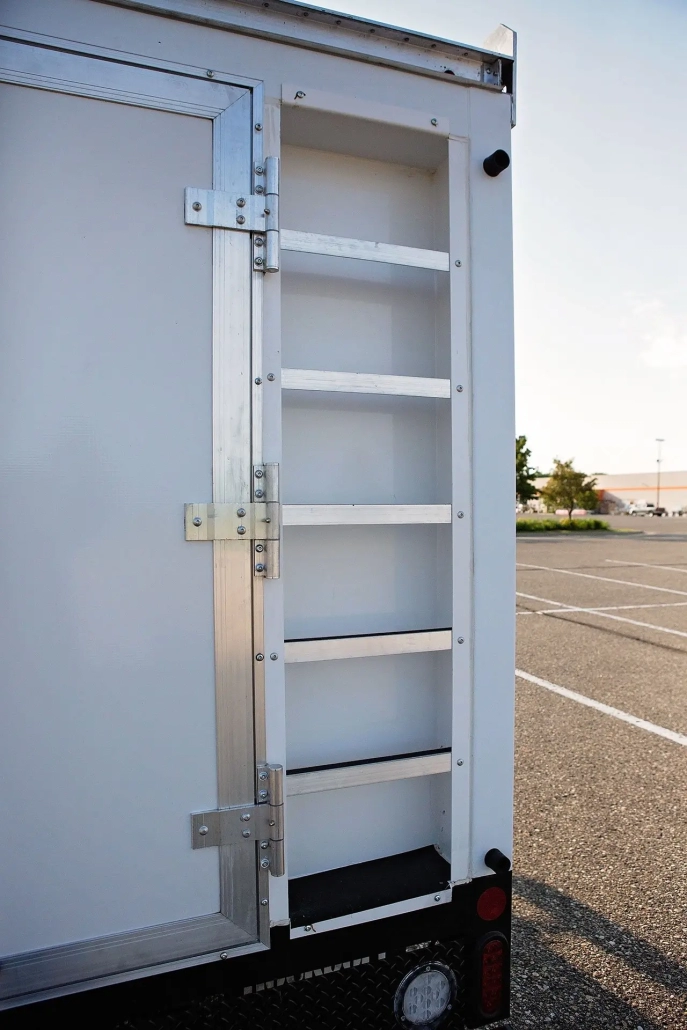

- Dual rear integrated access ladders
- 70/30 rear swing doors with 49.5” clear opening
- Tuff-Ply rubberized non-slip floor coating over 1 1/8” plywood

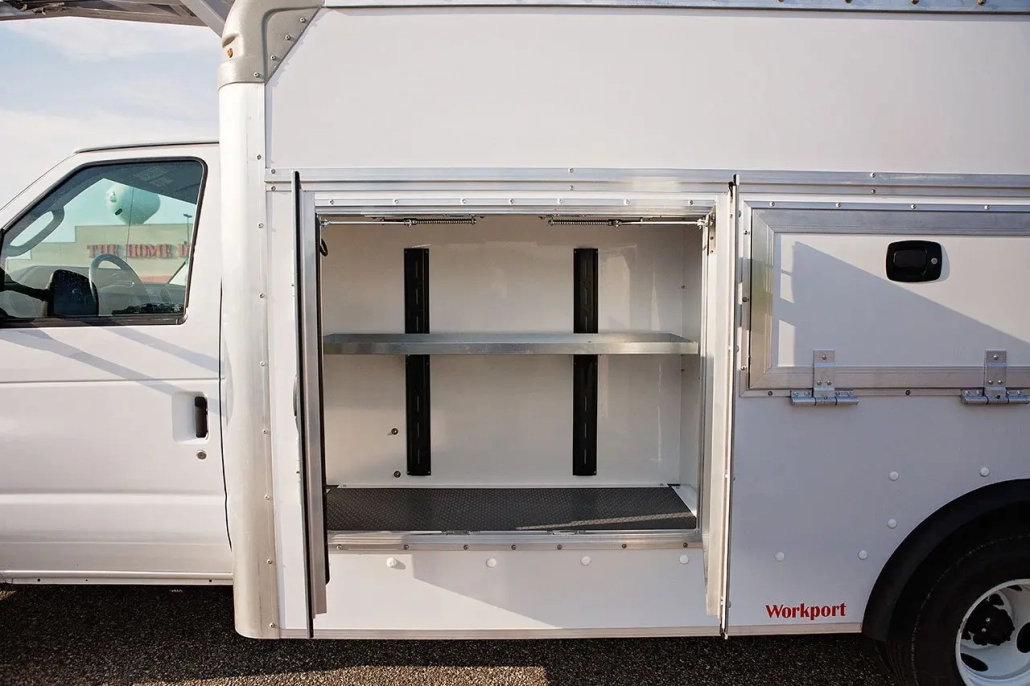

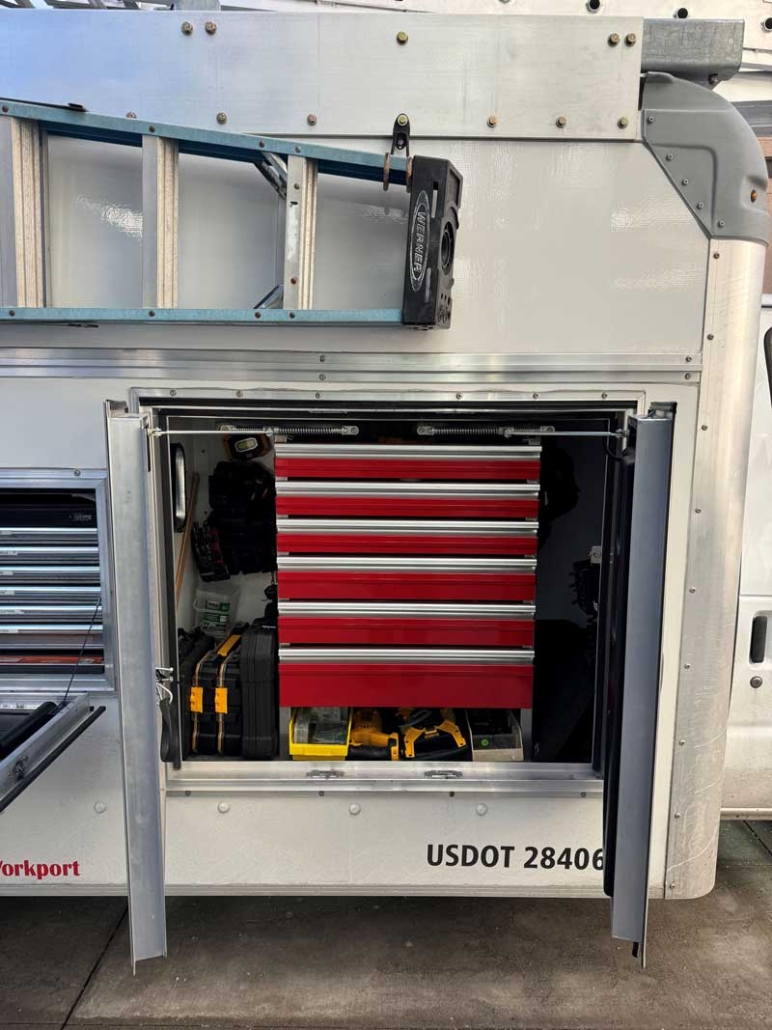

- Vertical compartments on both sides include adjustable shelf

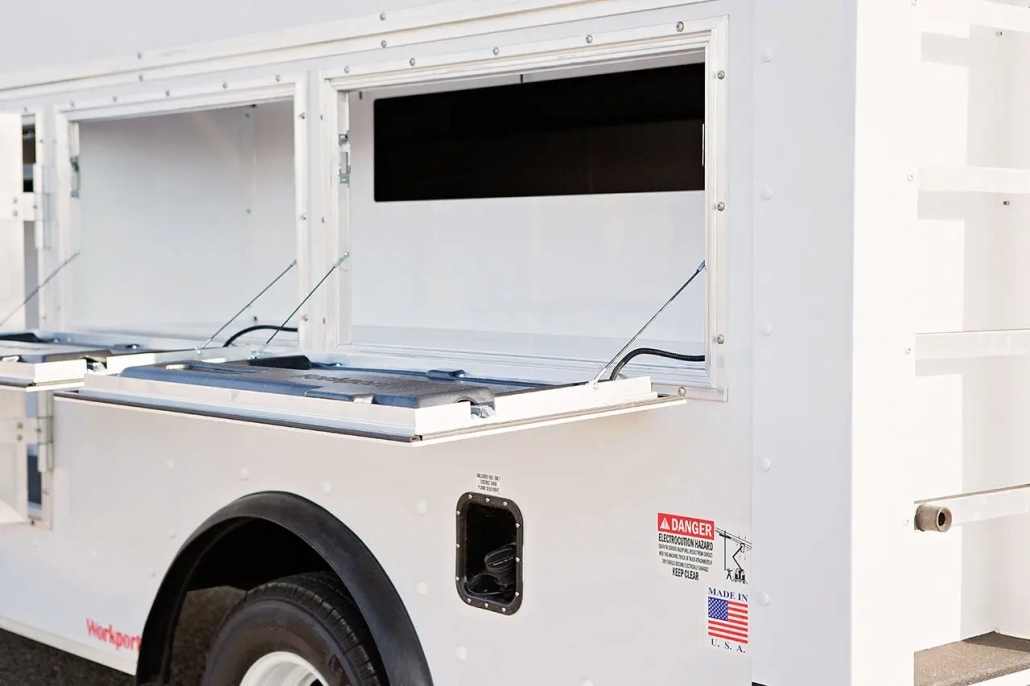

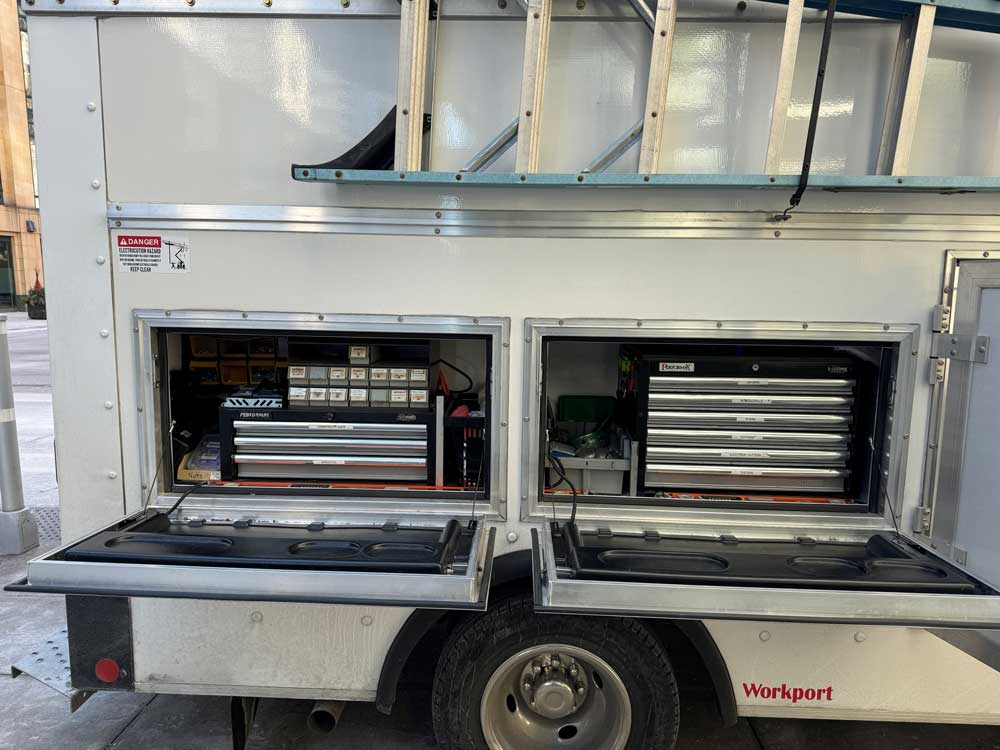

- Horizontal compartments on both sides include access from inside
- ABS Automotive style locking handles with spring loaded closures
- Heavy duty aluminum hinges with grease fittings
- Drip rail above compartment doors
- Interior counter top above compartments
- 67” Interior body height
- 2 LED Cargo lights with 3 way lighted cab switch
- Rear step bumper with class 3 receiver and 7 way plug
- Electric remote locking system (integrated with chassis power locks on most models)

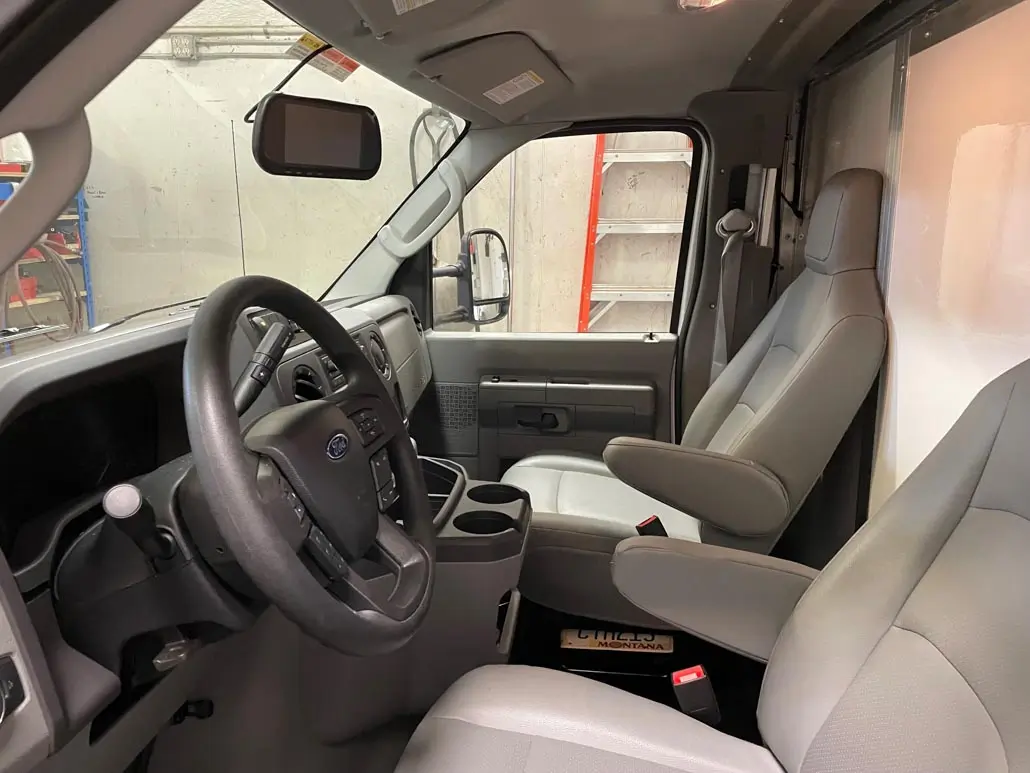

- Set back bulkhead for added front seat travel
- Sliding bulkhead door for access to cargo area from cab
- Usable cargo floor length true to body length (typically 12 feet)

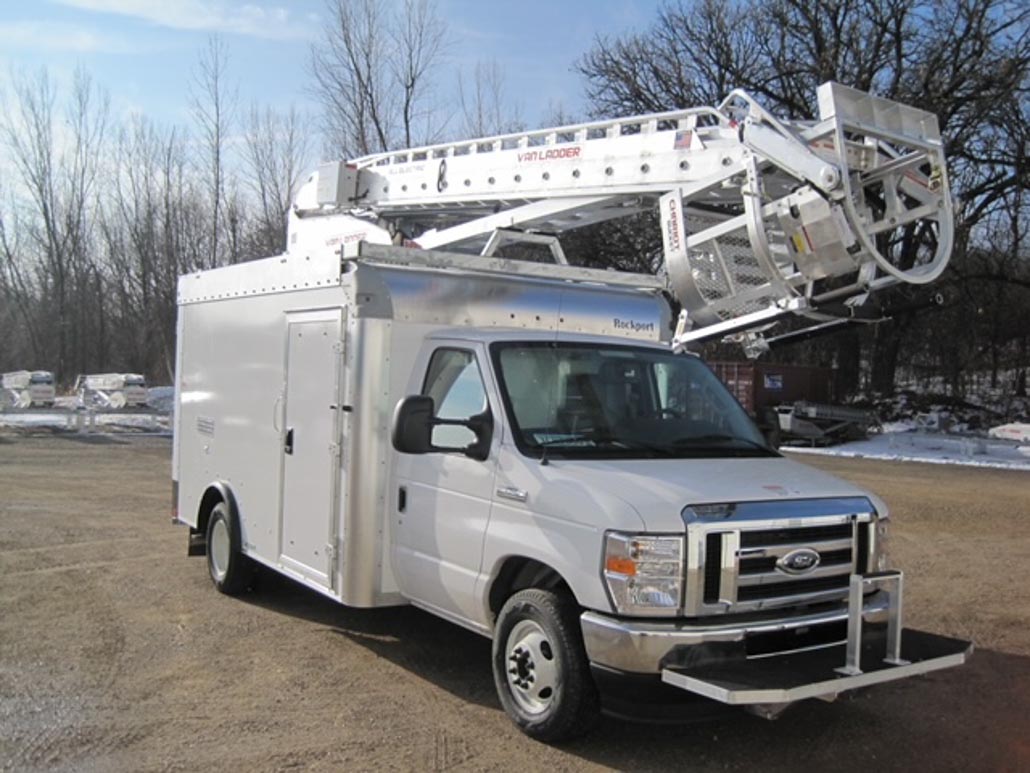

Cargoport

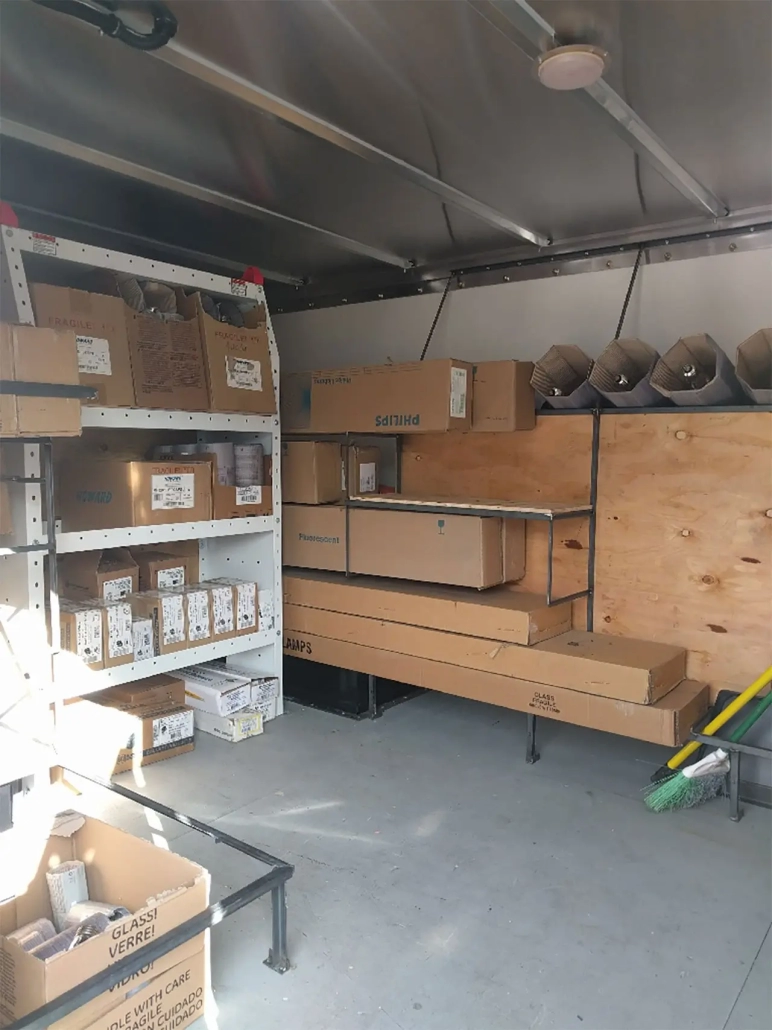

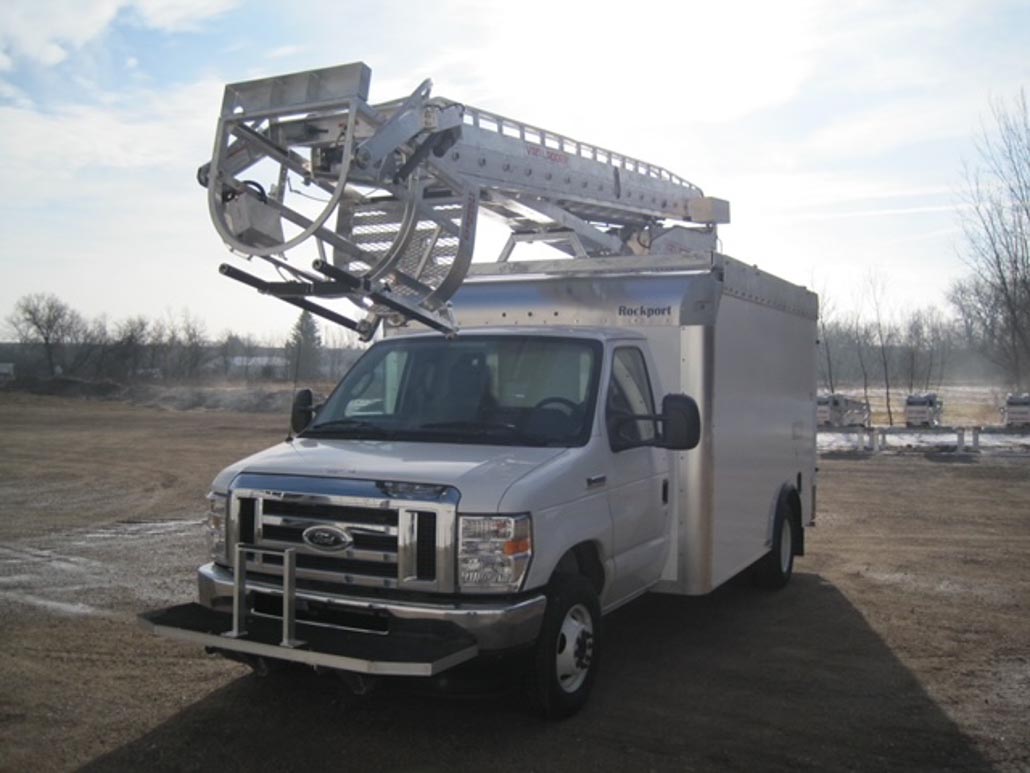

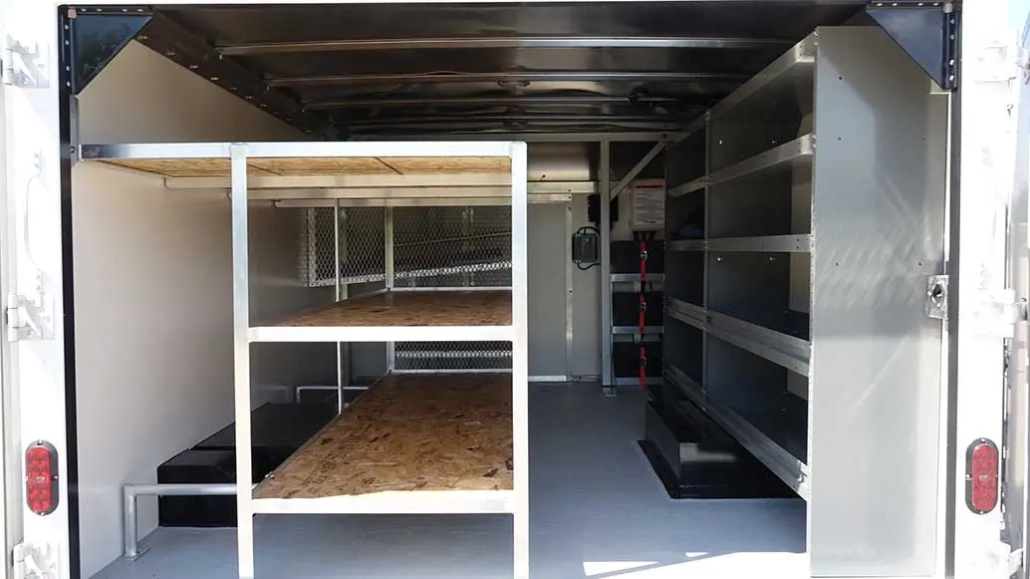

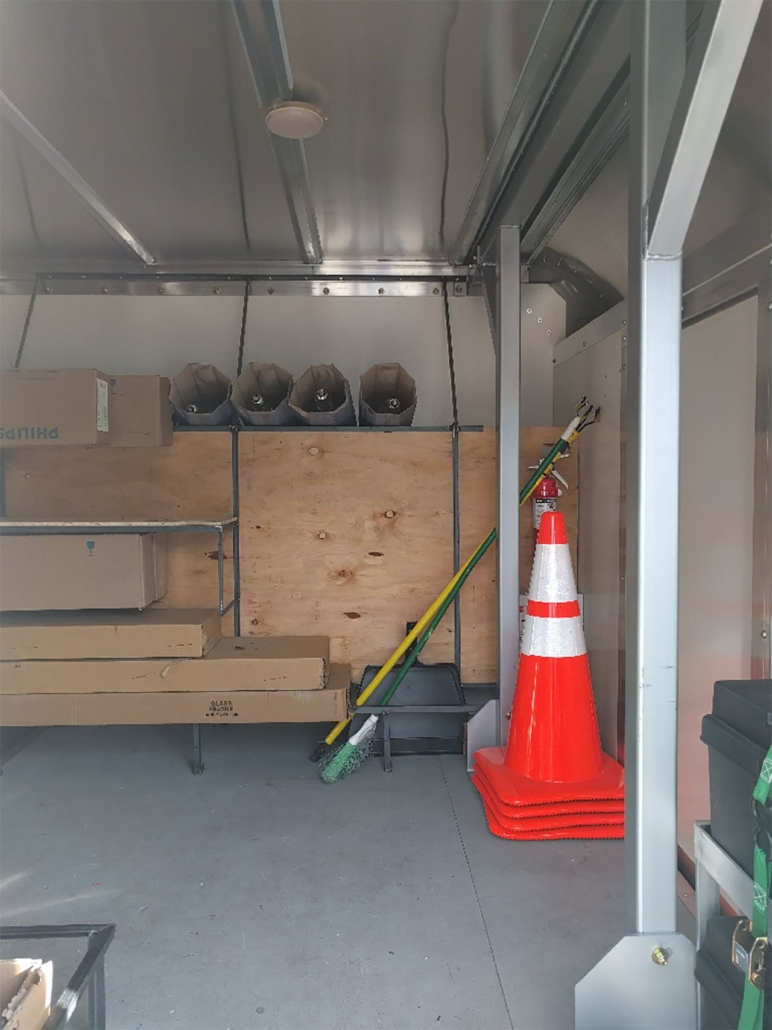

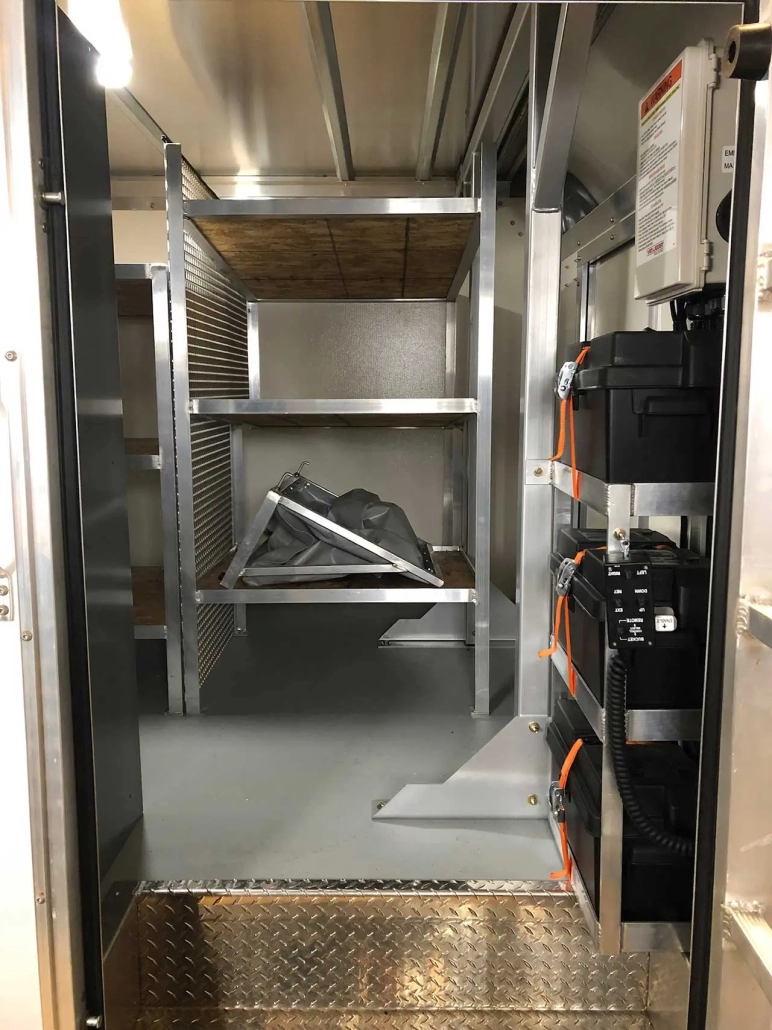

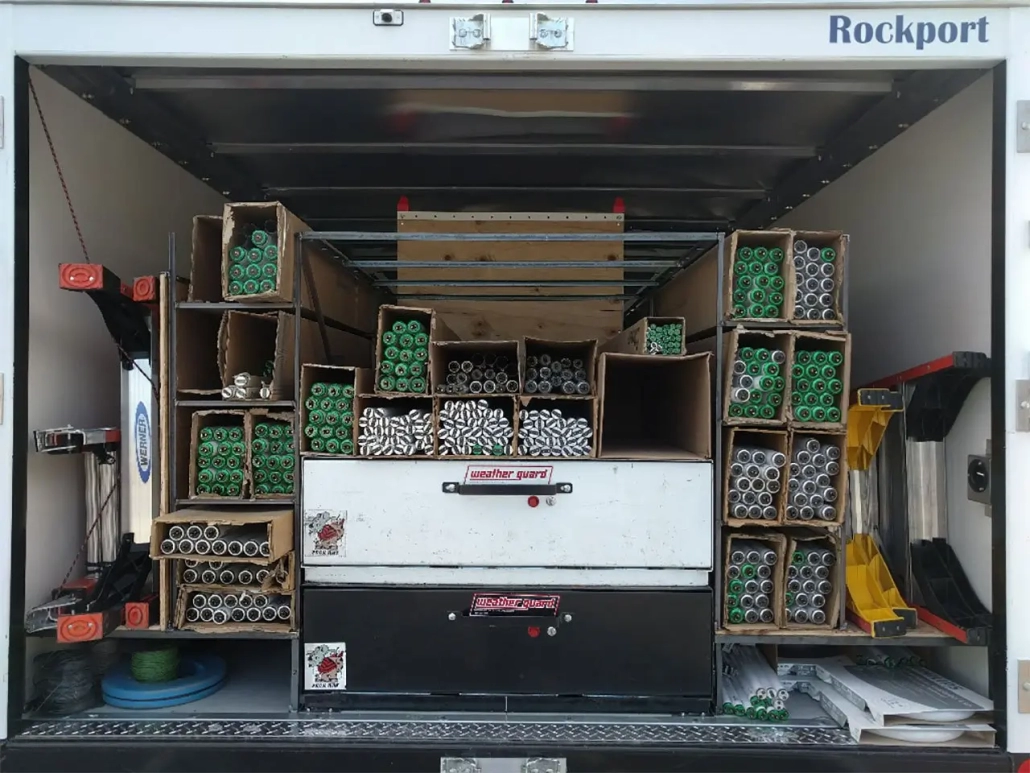

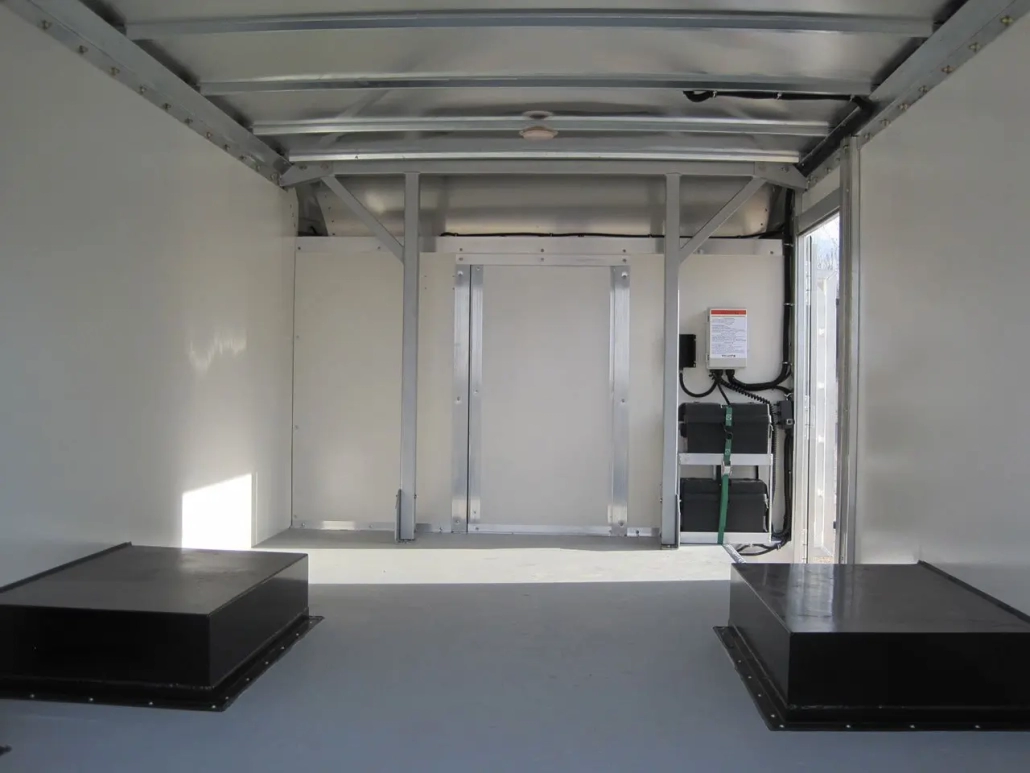

The Cargoport enclosed body is manufactured to Van Ladder specifications to provide a large open space able to be customized by the end user for maximizing storage potential. This creates a bucket truck that can be upfit with a variety of shelving and storage solutions or left open to handle large, bulky items. The curbside access door adds to the ease and flexibility offered by this body.
Standard features include:
- Fiberglass reinforced side walls
- E-coated steel and vinyl wrapped rear structure
- Aluminum roof
- Full undercoating
- Detachable rear door mounted access ladder
- Full opening rear swing doors with cam bar lock

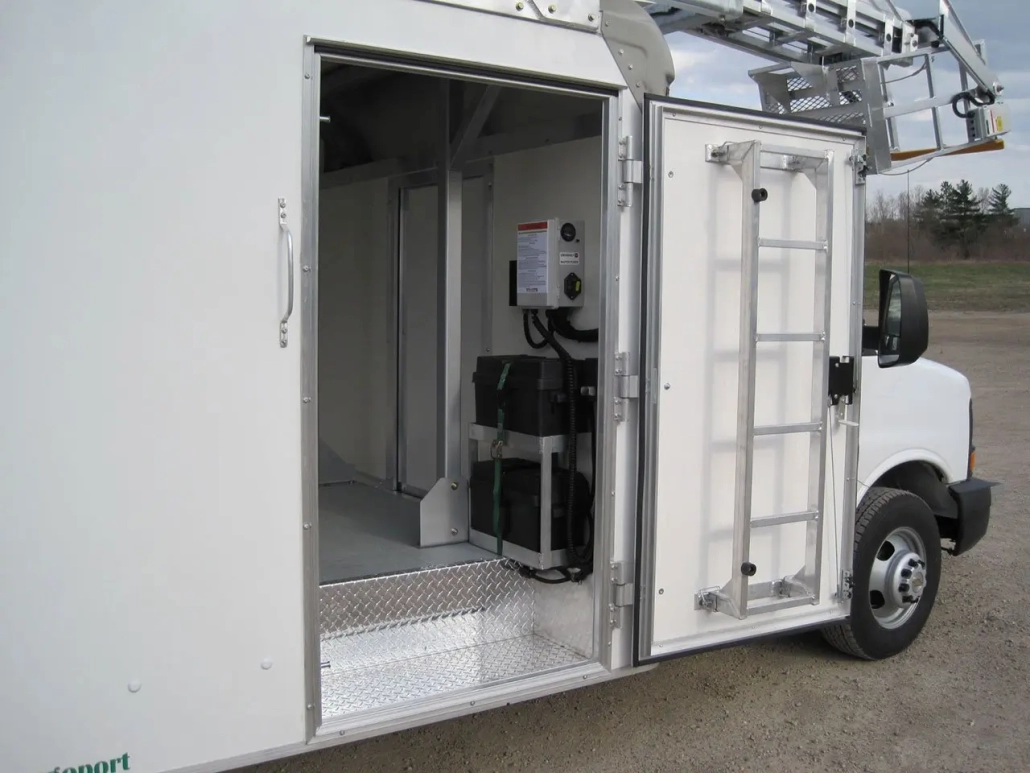

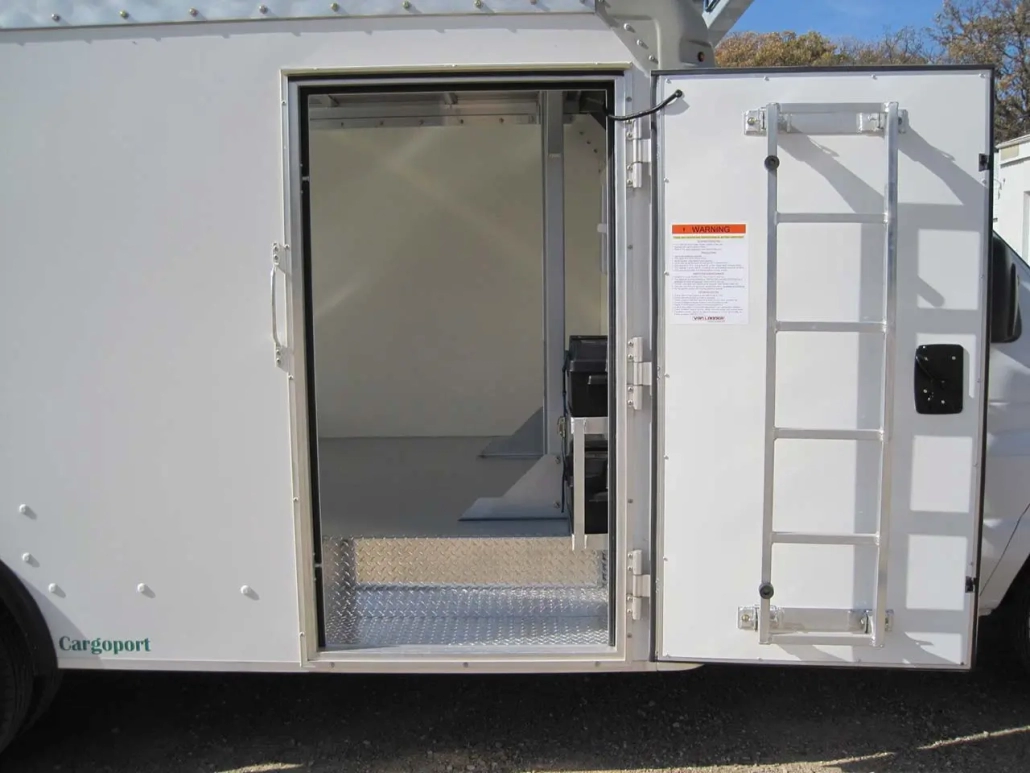

- 36” curbside swing door with step well
- Heavy duty aluminum hinges with grease fittings
- 1 1/8” painted plywood floor
- 67” Interior body height
- 2 LED Cargo lights with 3 way lighted cab switch
- Rear step bumper with class 3 receiver and 7 way plug
- Set back bulkhead for added front seat travel
- Sliding bulkhead door for access to cargo area from cab
- Usable cargo floor length true to body length (typically 12 feet)

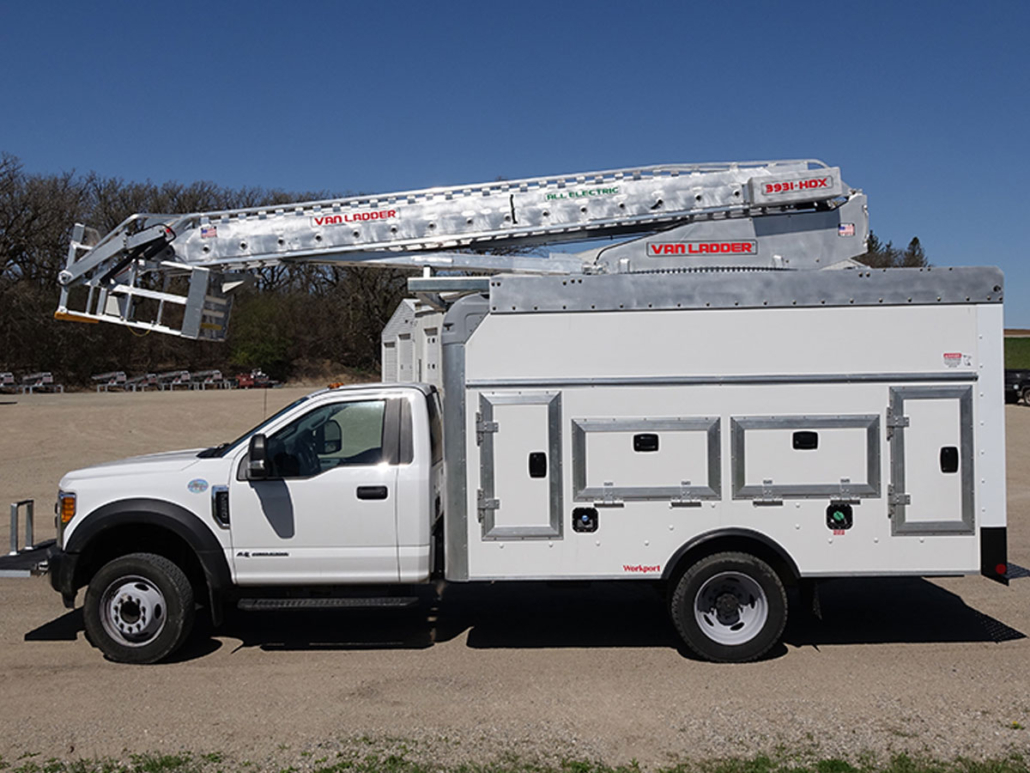

Custom Installations

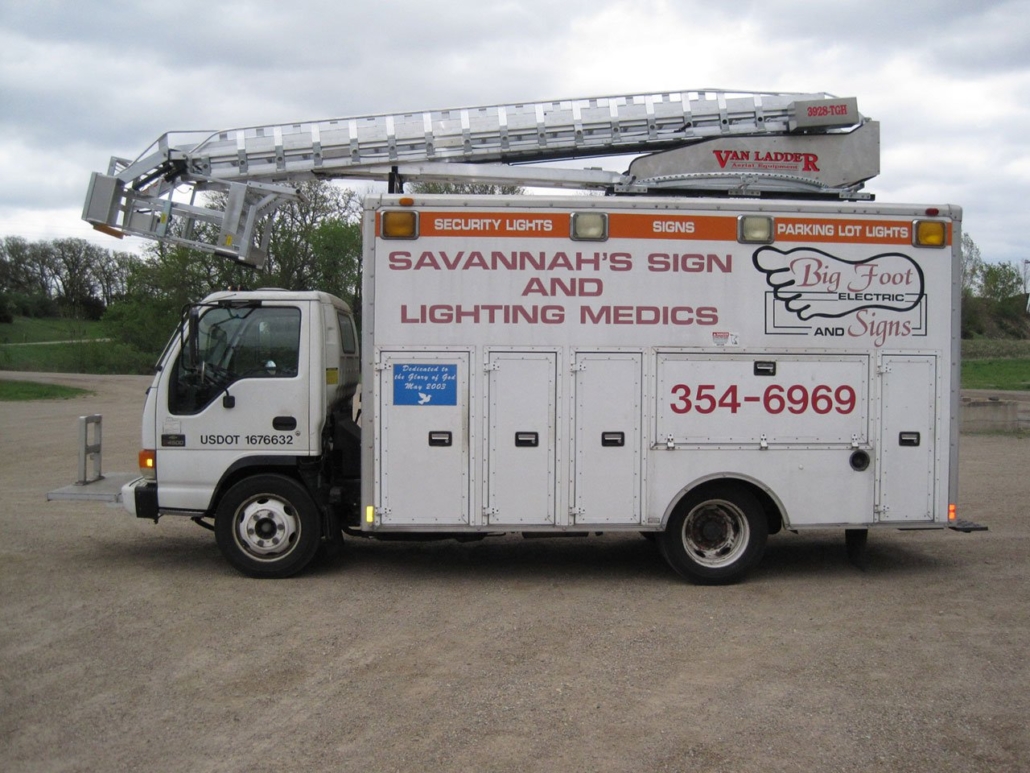

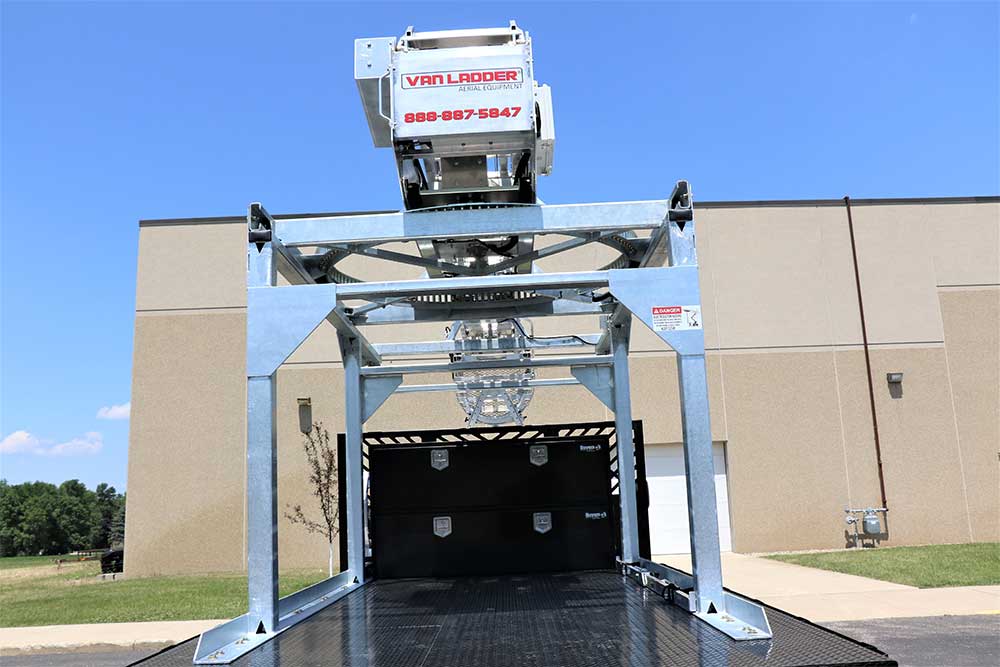

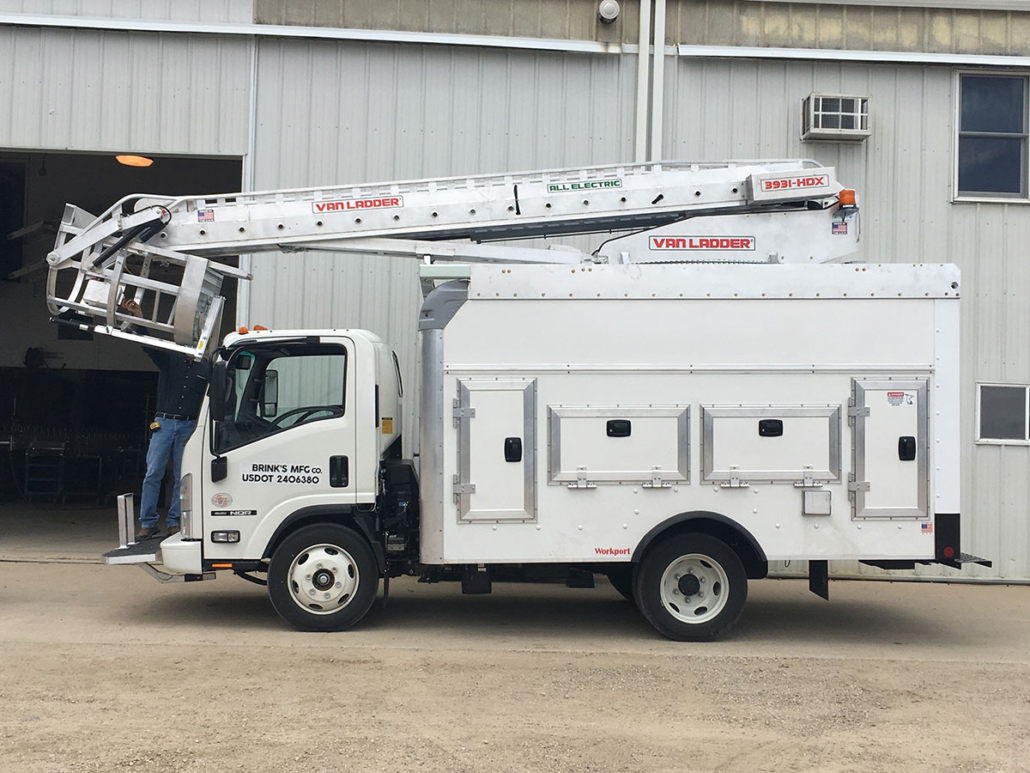

Van Ladder aerial lifts are designed to facilitate installation on many vehicles and bodies including: trucks, van cutaways, cab-over, flatbeds, utility bodies, cube bodies. Do you have a vision for your perfect bucket truck? Do you have an existing vehicle you would like to upfit? Let our friendly engineering staff help you achieve your goal.
Custom installations include:
- Mounting structures optimized for maximum storage and payload

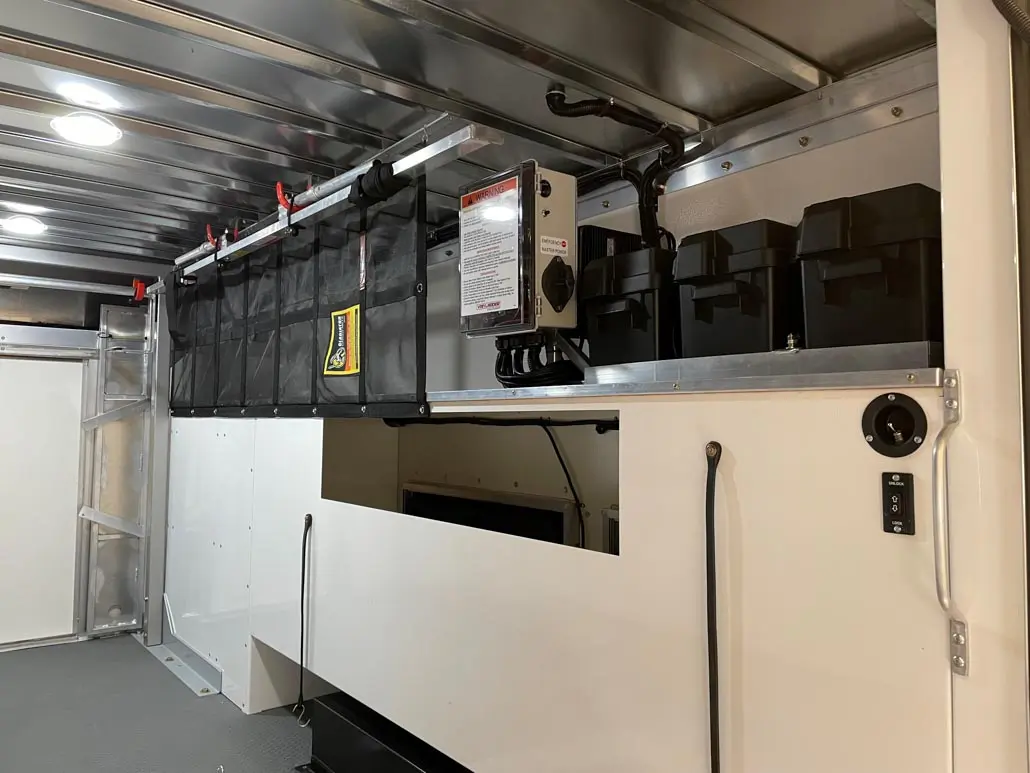

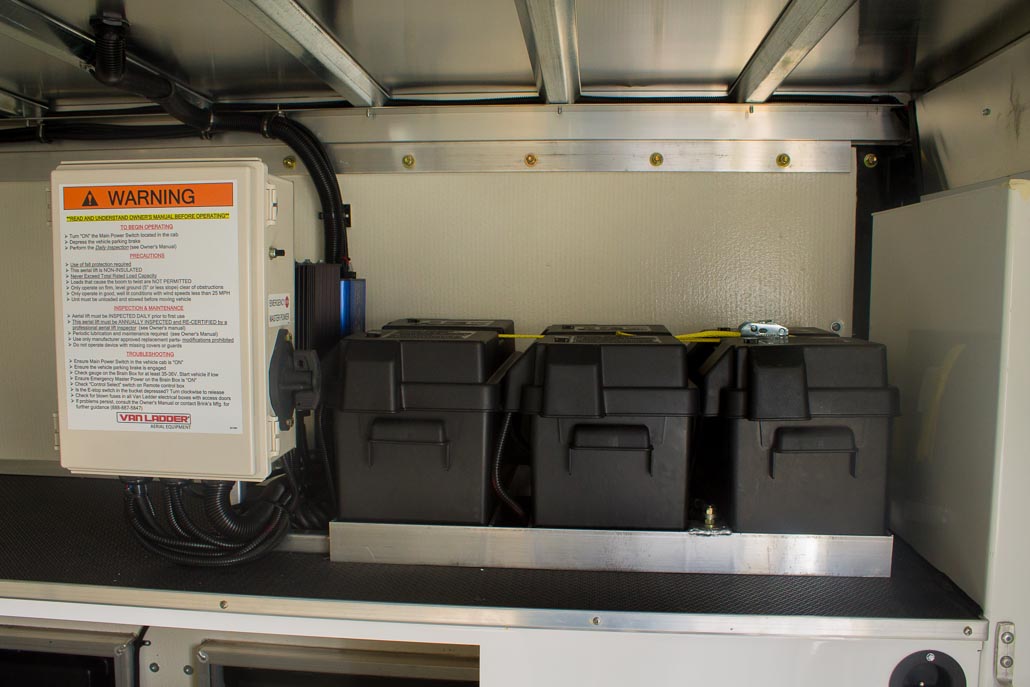

- Customized location for Van Ladder battery bank and charge system

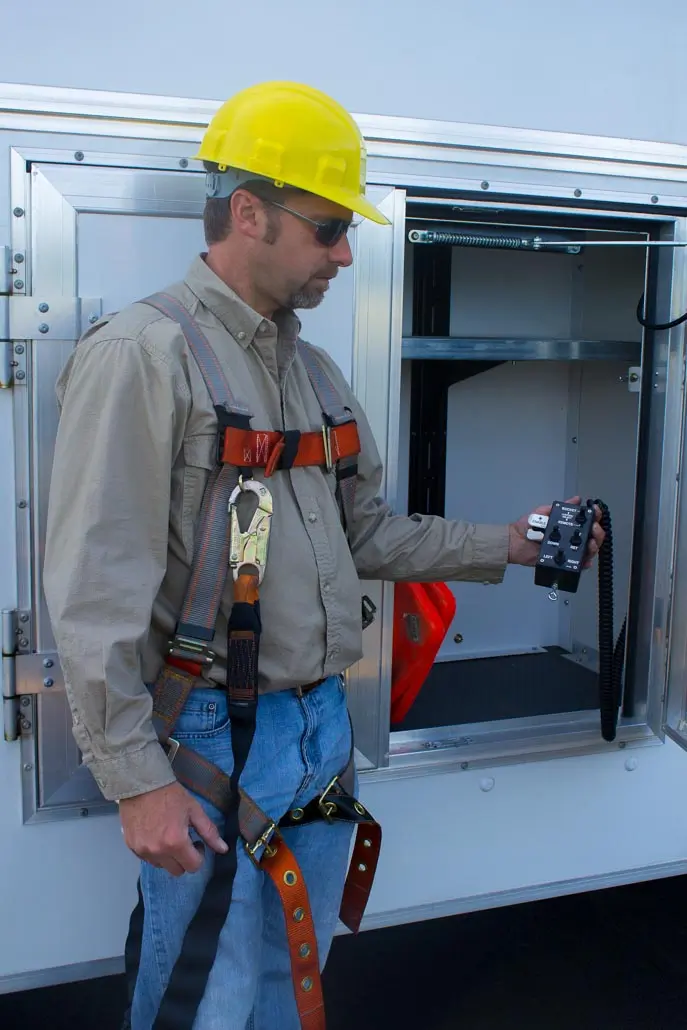

- Ground level remote control custom located

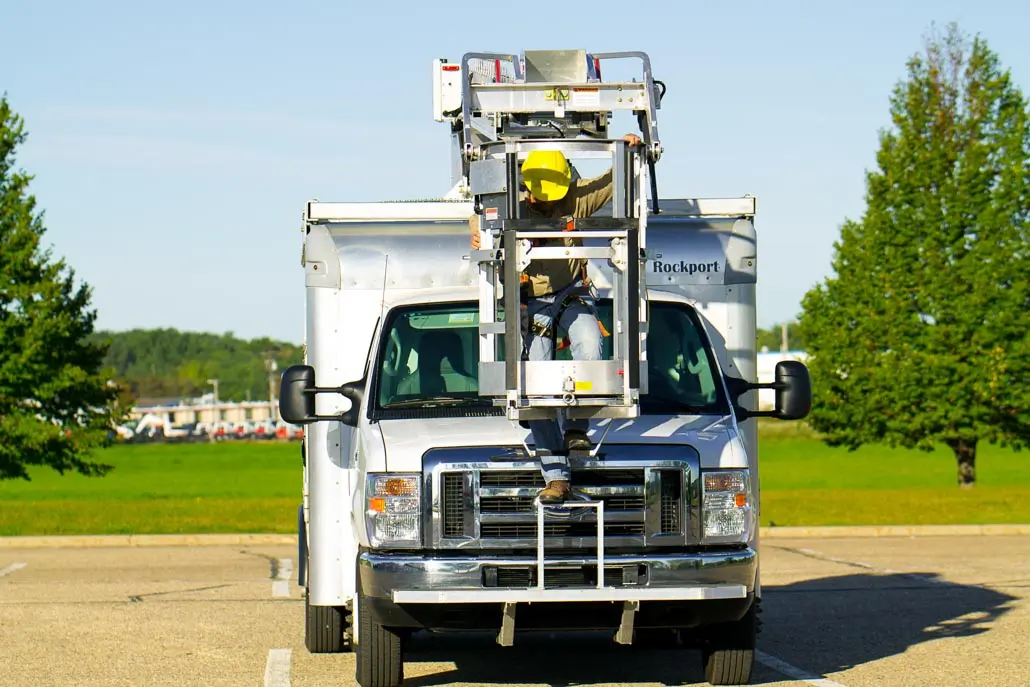

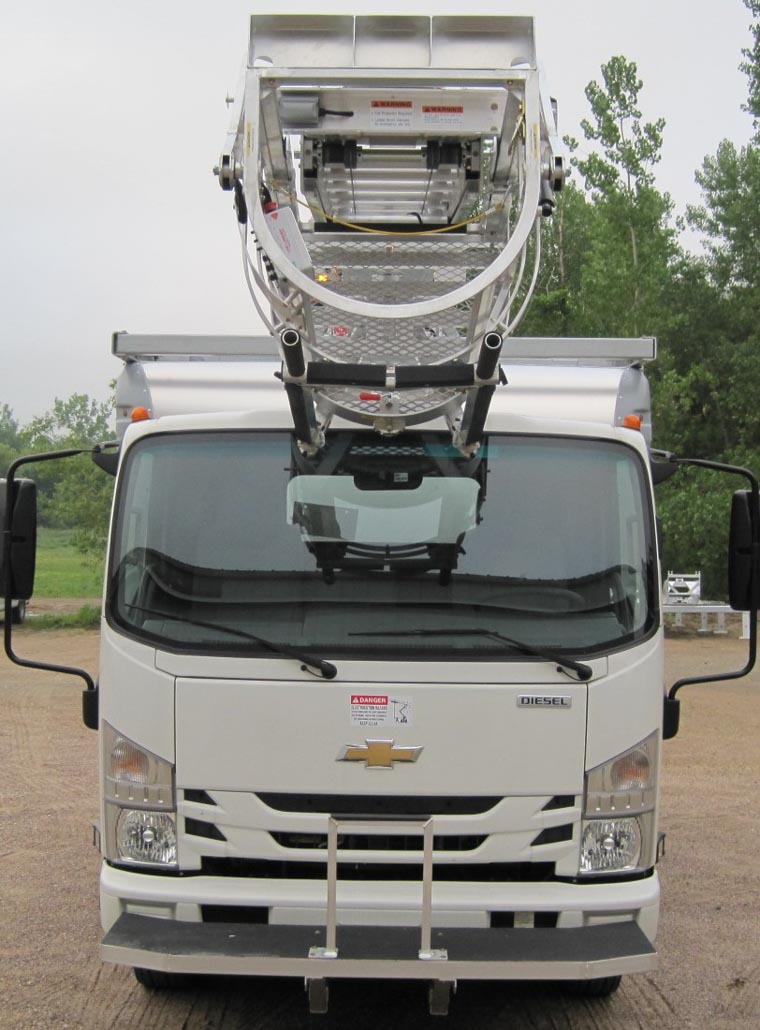

- Front bumper access platform and step
- Rear access ladder
